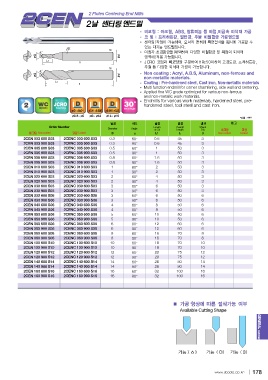

2 Flutes Centering End Mills

2

Non coating : Acryl, A.B.S, Aluminum, non-ferrous and
non-metallic materials.

Coating : Pre-hardened steel, Cast iron, Non-metallic materials
Multi function endmill for corner chamfering, side wall and centering.

Applied fine WC grade optimized for various non-ferrous

and non-metallic work materials.
Endmills for various work materials, hardened steel, pre-
hardened steel, tool steel and cast iron.

0 0.01 0.01 0.025 0.015 0.03 mm
0.3~ 5 6~ 12 14~ 16

Order Number Diameter Angle Length Overall Shank
of cut Length Dia
Non coated Coated D Non coated Coated
L1 L d
0.3
2CEN 003 600 S03 2CENC 003 600 S03 0.3 60 0.6 45 3
2CEN 003 900 S03 2CENC 003 900 S03 0.5
2CEN 005 600 S03 2CENC 005 600 S03 0.5 90 0.6 45 3
2CEN 005 900 S03 2CENC 005 900 S03 0.8
2CEN 008 600 S03 2CENC 008 600 S03 0.8 60 1 50 3
2CEN 008 900 S03 2CENC 008 900 S03 1
2CEN 010 600 S03 2CENC 010 600 S03 1 90 1 50 3
2CEN 010 900 S03 2CENC 010 900 S03 2
2CEN 020 600 S03 2CENC 020 600 S03 2 60 1.6 50 3
2CEN 020 900 S03 2CENC 020 900 S03 3
2CEN 030 600 S03 2CENC 030 600 S03 3 90 1.6 50 3
2CEN 030 900 S03 2CENC 030 900 S03 3
2CEN 030 600 S06 2CENC 030 600 S06 3 60 2 50 3
2CEN 030 900 S06 2CENC 030 900 S06 4
2CEN 040 600 S06 2CENC 040 600 S06 4 90 2 50 3
2CEN 040 900 S06 2CENC 040 900 S06 5
2CEN 050 600 S06 2CENC 050 600 S06 5 60 4 50 3
2CEN 050 900 S06 2CENC 050 900 S06 6
2CEN 060 600 S06 2CENC 060 600 S06 6 90 4 50 3
2CEN 060 900 S06 2CENC 060 900 S06 8
2CEN 080 600 S08 2CENC 080 600 S08 8 60 6 50 3
2CEN 080 900 S08 2CENC 080 900 S08 10
2CEN 100 600 S10 2CENC 100 600 S10 10 90 6 50 3
2CEN 100 900 S10 2CENC 100 900 S10 12
2CEN 120 600 S12 2CENC 120 600 S12 12 60 6 50 6
2CEN 120 900 S12 2CENC 120 900 S12 14
2CEN 140 600 S14 2CENC 140 600 S14 14 90 6 50 6
2CEN 140 900 S14 2CENC 140 900 S14 16
2CEN 160 600 S16 2CENC 160 600 S16 16 60 8 50 6
2CEN 160 900 S16 2CENC 160 900 S16
90 8 50 6

60 10 50 6

90 10 50 6

60 12 60 6

90 12 60 6

60 16 70 8

90 16 70 8

60 18 70 10

90 18 70 10

60 20 75 12

90 20 75 12

60 26 80 14

90 26 80 14

60 32 100 16

90 32 100 16

Available Cutting Shape

GENERAL PURPOSE
