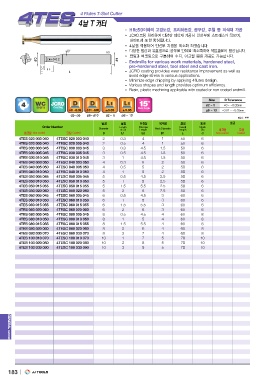

4 Flutes T-Slot Cutter

4T

Endmills for various work materials, hardened steel,
pre-hardened steel, tool steel and cast iron.
JCRO coating provides wear resistance improvement as well as
avoid edge stress in various applications.

Minimize edge chipping by applying 4flutes design.

Various shapes and length provides optimum efficiency.

Resin, plastic machining applicable witn coated or non coated endmill.

0 0.02 0.01 0.03 0.03 0.05 Size D Tolerance
2~ 5 6~ 10 2~ 5 6 ~ 10 2~5 +0 ~ -0.02mm
6 ~ 10 -0.01 ~ -0.03mm

mm

Order Number Diameter Length Effective Neck Diameter Overall Shank
of cut Length Length Dia
Non coated Coated D L1 D1 d Non coated Coated
L2 L
4TES 020 003 040 4TESC 020 003 040 2 0.3 1 6
4TES 020 005 040 4TESC 020 005 040 2 0.5 4 1 50 6
4TES 030 003 045 4TESC 030 003 045 3 0.3 4 1.5 50 6
4TES 030 005 045 4TESC 030 005 045 3 0.5 4.5 1.5 50 6
4TES 030 010 045 4TESC 030 010 045 3 1 4.5 1.5 50 6
4TES 040 003 050 4TESC 040 003 050 4 0.3 4.5 2 50 6
4TES 040 005 050 4TESC 040 005 050 4 0.5 5 2 50 6
4TES 040 010 050 4TESC 040 010 050 4 1 5 2 50 6
4TES 050 005 045 4TESC 050 005 045 5 0.5 5 2.5 50 6
4TES 050 010 050 4TESC 050 010 050 5 1 4.5 2.5 50 6
4TES 050 015 055 4TESC 050 015 055 5 1.5 5 2.5 50 6
4TES 050 020 060 4TESC 050 020 060 5 2 5.5 2.5 50 6
4TES 060 005 045 4TESC 060 005 045 6 0.5 6 3 50 6
4TES 060 010 050 4TESC 060 010 050 6 1 4.5 3 60 6
4TES 060 015 055 4TESC 060 015 055 6 1.5 5 3 60 6
4TES 060 020 060 4TESC 060 020 060 6 2 5.5 3 60 6
4TES 080 005 045 4TESC 080 005 045 8 0.5 6 4 60 8
4TES 080 010 050 4TESC 080 010 050 8 1 4.5 4 60 8
4TES 080 015 055 4TESC 080 015 055 8 1.5 5 4 60 8
4TES 080 020 060 4TESC 080 020 060 8 2 5.5 4 60 8
4TES 080 030 070 4TESC 080 030 070 8 3 6 4 60 8
4TES 100 010 070 4TESC 100 010 070 10 1 7 5 60 10
4TES 100 020 080 4TESC 100 020 080 10 2 7 5 70 10
4TES 100 030 090 4TESC 100 030 090 10 3 8 5 70 10
9 70

GENERAL PURPOSE
