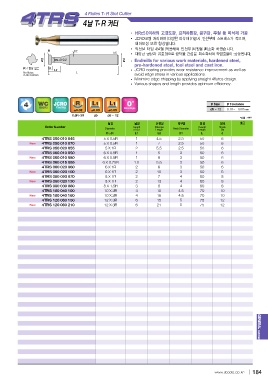

4 Flutes T- R Slot Cutter

4 T-R

Endmills for various work materials, hardened steel,
pre-hardened steel, tool steel and cast iron.
JCRO coating provides wear resistance improvement as well as
avoid edge stress in various applications.

Minimize edge chipping by applying straight 4flutes design.

Various shapes and length provides optimum efficiency.

0.02 0.03 0.05 D Size D Tolerance
0.5R~3R 5 6 ~ 12 5 ~ 12 -0 .01~ -0.025mm

mm

Order Number Diameter Length Effective Neck Diameter Overall Shank
of cut Length Length Dia
4TRS 050 010 045 DR L1 D1 d
New 4TRS 050 010 070 L2 L
5 X 0.5R 1 2.5 6
4TRS 050 020 055 5 X 0.5R 1 4.5 2.5 50 6
4TRS 060 010 050 5 X 1R 2 7 2.5 50 6
New 4TRS 060 010 080 6 X 0.5R 1 5.5 3 50 6
4TRS 060 015 055 6 X 0.5R 1 5 3 50 6
4TRS 060 020 060 6 X 0.75R 1.5 8 3 50 6
New 4TRS 060 020 100 6 X 1R 2 5.5 3 50 6
4TRS 080 020 070 6 X 1R 2 6 3 50 6
New 4TRS 080 020 130 8 X 1R 2 10 4 50 8
4TRS 080 030 080 8 X 1R 2 7 4 60 8
4TRS 100 040 100 8 X 1.5R 3 13 4 60 8
New 4TRS 100 040 160 10 X 2R 4 8 4.5 60 10
4TRS 120 060 150 10 X 2R 4 10 4.5 70 10
New 4TRS 120 060 210 12 X 3R 6 16 5 70 12
12 X 3R 6 15 5 75 12
21 75

GENERAL PURPOSE
