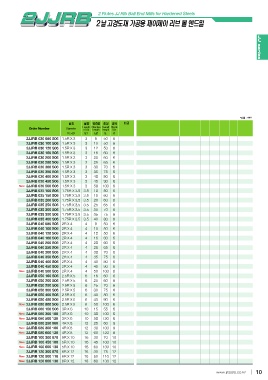

2 Flutes JJ Rib Ball End Mills for Hardened Steels
2
JJ series
mm
Order Number Diameter Length Effective Overall Shank
RD of cut Length Length Dia
L1 L2 L d
2JJRB 030 080 S06 1.5R X 3 3 8 50 6
2JJRB 030 100 S06 1.5R X 3 3 10 50 6
2JJRB 030 120 S06 1.5R X 3 3 12 50 6
2JJRB 030 160 S06 1.5R X 3 3 16 60 6
2JJRB 030 200 S06 1.5R X 3 3 20 60 6
2JJRB 030 250 S06 1.5R X 3 3 25 65 6
2JJRB 030 300 S06 1.5R X 3 3 30 70 6
2JJRB 030 350 S06 1.5R X 3 3 35 75 6
2JJRB 030 400 S06 1.5R X 3 3 40 80 6
2JJRB 030 450 S06 1.5R X 3 3 45 90 6
New 2JJRB 030 500 S06 1.5R X 3 3 50 100 6
2JJRB 035 100 S06 1.75R X 3.5 3.5 10 50 6
2JJRB 035 150 S06 1.75R X 3.5 3.5 15 60 6
2JJRB 035 200 S06 1.75R X 3.5 3.5 20 60 6
2JJRB 035 250 S06 1.75R X 3.5 3.5 25 65 6
2JJRB 035 300 S06 1.75R X 3.5 3.5 30 70 6
2JJRB 035 350 S06 1.75R X 3.5 3.5 35 75 6
2JJRB 035 400 S06 1.75R X 3.5 3.5 40 80 6
2JJRB 040 080 S06 2R X 4 4 8 50 6
2JJRB 040 100 S06 2R X 4 4 10 50 6
2JJRB 040 120 S06 2R X 4 4 12 50 6
2JJRB 040 160 S06 2R X 4 4 16 60 6
2JJRB 040 200 S06 2R X 4 4 20 60 6
2JJRB 040 250 S06 2R X 4 4 25 65 6
2JJRB 040 300 S06 2R X 4 4 30 70 6
2JJRB 040 350 S06 2R X 4 4 35 75 6
2JJRB 040 400 S06 2R X 4 4 40 80 6
2JJRB 040 450 S06 2R X 4 4 45 90 6
New 2JJRB 040 500 S06 2R X 4 4 50 100 6
2JJRB 050 160 S06 2.5R X 5 6 16 60 6
2JJRB 050 200 S06 2.5R X 5 6 20 60 6
2JJRB 050 250 S06 2.5R X 5 6 25 70 6
2JJRB 050 300 S06 2.5R X 5 6 30 75 6
2JJRB 050 400 S06 2.5R X 5 6 40 80 6
2JJRB 050 450 S06 2.5R X 5 6 45 90 6
New 2JJRB 050 500 S06 2.5R X 5 6 50 100 6
2JJRB 060 150 S06 3R X 6 10 15 55 6
New 2JJRB 060 300 100 3R X 6 10 30 100 6
New 2JJRB 060 500 120 3R X 6 10 50 120 6
2JJRB 080 250 060 4R X 8 12 25 60 8
New 2JJRB 080 300 100 4R X 8 12 30 100 8
New 2JJRB 080 600 120 4R X 8 12 60 120 8
2JJRB 100 300 070 5R X 10 16 30 70 10
New 2JJRB 100 450 100 5R X 10 16 45 100 10
New 2JJRB 100 600 130 5R X 10 16 60 130 10
2JJRB 120 300 075 6R X 12 18 30 75 12
New 2JJRB 120 500 110 6R X 12 18 50 110 12
New 2JJRB 120 600 130 6R X 12 18 60 130 12
