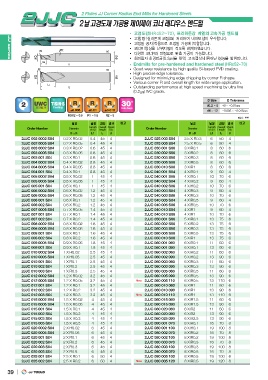

2 Flutes JJ Corner Radius End Mills for Hardened Steels

2

JJ series

Endmills for pre-hardened and hardened steel (HRc52~70)
Good wear resistance by high quality Si-based PVD coating.
High precise edge tolerance.
Designed for minimizing edge chipping by corner R shape.
Various corner R and overall length for wide range application.
Outstanding performance at high speed machining by ultra fine
(0.2 ) WC grade.

0.005 0.01 0.015 D Size D Tolerance
R2 ~ 5 0.2 ~ 5 +0 ~ -0.01mm
6 ~ 12 -0.005 ~ -0.015mm

R0.02 ~ 0.5 R1 ~ 1.5 mm

Order Number Diameter Length Overall Shank Order Number Diameter Length Overall Shank
of cut Length Dia of cut Length Dia
2JJC 002 0002 S04 DR L1 L d 2JJC 025 003 S04 DR L1 L d
2JJC 002 0005 S04 2JJC 025 005 S04
2JJC 003 0002 S04 0.2 X R0.02 0.4 45 4 2JJC 030 001 S06 2.5 X R0.3 6 50 4
2JJC 003 0005 S04 0.2 X R0.05 0.4 45 4 2JJC 030 002 S06 2.5 X R0.5 6 50 4
2JJC 003 001 S04 0.3 X R0.02 0.6 45 4 2JJC 030 003 S06 3 X R0.1 8 60 6
2JJC 004 0002 S04 0.3 X R0.05 0.6 45 4 2JJC 030 005 S06 3 X R0.2 8 60 6
2JJC 004 0005 S04 0.3 X R0.1 0.6 45 4 2JJC 030 010 S06 3 X R0.3 8 60 6
2JJC 004 001 S04 0.4 X R0.02 0.8 45 4 2JJC 040 001 S04 3 X R0.5 8 60 6
2JJC 005 0002 S04 0.4 X R0.05 0.8 45 4 2JJC 040 001 S06 3 X R1 8 60 6
2JJC 005 0005 S04 0.4 X R0.1 0.8 45 4 2JJC 040 002 S04 4 X R0.1 9 60 4
2JJC 005 001 S04 0.5 X R0.02 1 45 4 2JJC 040 002 S06 4 X R0.1 10 70 6
2JJC 006 0002 S04 0.5 X R0.05 1 45 4 2JJC 040 003 S04 4 X R0.2 9 60 4
2JJC 006 0005 S04 0.5 X R0.1 1 45 4 2JJC 040 003 S06 4 X R0.2 10 70 6
2JJC 006 001 S04 0.6 X R0.02 1.2 45 4 2JJC 040 005 S04 4 X R0.3 9 60 4
2JJC 006 002 S04 0.6 X R0.05 1.2 45 4 2JJC 040 005 S06 4 X R0.3 10 70 6
2JJC 007 0005 S04 0.6 X R0.1 1.2 45 4 2JJC 040 010 S04 4 X R0.5 9 60 4
2JJC 007 001 S04 0.6 X R0.2 1.2 45 4 2JJC 040 010 S06 4 X R0.5 10 70 6
2JJC 007 002 S04 0.7 X R0.05 1.4 45 4 2JJC 050 001 S06 4 X R1 9 60 4
2JJC 008 0002 S04 0.7 X R0.1 1.4 45 4 2JJC 050 002 S06 4 X R1 10 70 6
2JJC 008 0005 S04 0.7 X R0.2 1.4 45 4 2JJC 050 003 S06 5 X R0.1 13 75 6
2JJC 008 001 S04 0.8 X R0.02 1.6 45 4 2JJC 050 005 S06 5 X R0.2 13 75 6
2JJC 008 002 S04 0.8 X R0.05 1.6 45 4 2JJC 050 010 S06 5 X R0.3 13 75 6
2JJC 009 0005 S04 0.8 X R0.1 1.6 45 4 2JJC 060 001 060 5 X R0.5 13 75 6
2JJC 009 001 S04 0.8 X R0.2 1.6 45 4 2JJC 060 001 090 5 X R1 13 75 6
2JJC 010 0002 S04 0.9 X R0.05 1.8 45 4 2JJC 060 002 060 6 X R0.1 11 60 6
2JJC 010 0005 S04 0.9 X R0.1 1.8 45 4 2JJC 060 002 090 6 X R0.1 13 90 6
2JJC 010 001 S04 1 X R0.02 2.5 45 4 2JJC 060 003 060 6 X R0.2 11 60 6
2JJC 010 002 S04 1 X R0.05 2.5 45 4 2JJC 060 003 090 6 X R0.2 13 90 6
2JJC 010 003 S04 1 X R0.1 2.5 45 4 2JJC 060 005 060 6 X R0.3 11 60 6
2JJC 012 0002 S04 1 X R0.2 2.5 45 4 2JJC 060 005 090 6 X R0.3 13 90 6
2JJC 012 0005 S04 1 X R0.3 2.5 45 4 New 2JJC 060 005 110 6 X R0.5 11 60 6
2JJC 012 001 S04 1.2 X R0.02 3.2 45 4 2JJC 060 010 060 6 X R0.5 13 90 6
2JJC 012 002 S04 1.2 X R0.05 3.2 45 4 2JJC 060 010 090 6 X R0.5 13 110 6
2JJC 012 003 S04 1.2 X R0.1 3.2 45 4 New 2JJC 060 010 110 6 X R1 11 60 6
2JJC 015 0002 S04 1.2 X R0.2 3.2 45 4 2JJC 060 015 060 6 X R1 13 90 6
2JJC 015 0005 S04 1.2 X R0.3 3.2 45 4 2JJC 060 015 090 6 X R1 13 110 6
2JJC 015 001 S04 1.5 X R0.02 4 45 4 2JJC 060 020 060 6 X R1.5 11 60 6
2JJC 015 002 S04 1.5 X R0.05 4 45 4 2JJC 060 020 090 6 X R1.5 13 90 6
2JJC 015 003 S04 1.5 X R0.1 4 45 4 2JJC 060 025 090 6 X R2 11 60 6
2JJC 015 005 S04 1.5 X R0.2 4 45 4 2JJC 080 001 070 6 X R2 13 90 6
2JJC 020 0002 S04 1.5 X R0.3 4 45 4 2JJC 080 001 100 6 X R2.5 13 90 6
2JJC 020 0005 S04 1.5 X R0.5 4 45 4 2JJC 080 002 070 8 X R0.1 16 70 8
2JJC 020 001 S04 2 X R0.02 6 45 4 2JJC 080 002 100 8 X R0.1 19 100 8
2JJC 020 002 S04 2 X R0.05 6 45 4 2JJC 080 003 070 8 X R0.2 16 70 8
2JJC 020 003 S04 2 X R0.1 6 45 4 2JJC 080 003 100 8 X R0.2 19 100 8
2JJC 020 005 S04 2 X R0.2 6 45 4 2JJC 080 005 070 8 X R0.3 16 70 8
2JJC 025 001 S04 2 X R0.3 6 45 4 2JJC 080 005 100 8 X R0.3 19 100 8
2JJC 025 002 S04 2 X R0.5 6 45 4 New 2JJC 080 005 120 8 X R0.5 16 70 8
2.5 X R0.1 6 50 4 8 X R0.5 19 100 8
39 JJ TOOLS 2.5 X R0.2 6 50 4 8 X R0.5 19 120 8
