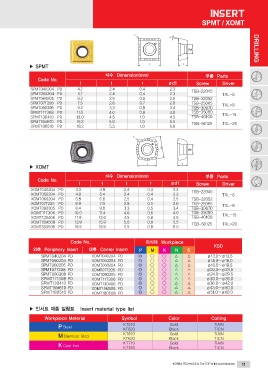

SPMT / XOMT

DRILLING

▶ SPMT 치수 Dimension(mm) 부품 Parts

Code No. l tr ød1 Screw Driver

SPMT040204 PD 4.7 2.4 0.4 2.3 TSB-22045 TXL-6
SPMT050204 PD 5.1 2.4 0.4 2.3 TSB-22052 TXL-8
SPMT060205 PD 6.2 2.5 0.5 2.5 TSB-25065 TXL-15
SPMT07T208 PD 7.5 2.8 0.7 2.8 TSB-30070
SPMT090308 PD 9.2 3.3 0.8 3.4 TSB-35080
SPMT11T308 PD 11.0 4.0 0.8 4.0 TSB-40100
SPMT130410 PD 13.0 4.5 1.0 4.5
SPMT15M510 PD 15.2 5.0 1.0 5.5 TSB-50125 TXL-20
SPMT180510 PD 18.2 5.5 1.0 6.0

▶ XOMT 치수 Dimension(mm) 부품 Parts

Code No. l t tr ød1 Screw Driver

XOMT040204 PD 4.3 4.9 2.4 0.4 2.3 TSB-22045 TXL-6
XOMT050204 PD 4.8 5.4 2.4 0.4 2.3 TSB-22052 TXL-8
XOMT060204 PD 5.8 6.6 2.5 0.4 2.5 TSB-25065 TXL-15
XOMT07T205 PD 6.9 7.8 2.8 0.5 2.8 TSB-30070
XOMT090305 PD 8.4 9.6 3.3 0.5 3.4 TSB-35080
XOMT11T306 PD 10.0 11.4 4.0 0.6 4.0 TSB-40100
XOMT130406 PD 11.9 13.6 4.5 0.6 4.5
XOMT15M508 PD 13.9 15.9 5.0 0.8 5.5 TSB-50125 TXL-20
XOMT180508 PD 16.5 18.9 5.5 0.8 6.0

Code No. 피삭재 Workpiece KSD
ø13.0~ø13.5
외측 Periphery Insert 내측 Center Insert PMKN S ø14.0~ø16.0
◎◯◯△ △ ø16.5~ø19.5
SPMT040204 PD XOMT040204 PD ◎◯◯△ △ ø20.0~ø23.5
SPMT050204 PD XOMT050204 PD ◎◯◯△ △ ø24.0~ø29.5
SPMT060205 PD XOMT060204 PD ◎◯◯△ △ ø30.0~ø35.0
SPMT07T208 PD XOMT07T205 PD ◎◯◯△ △ ø36.0~ø42.0
SPMT090308 PD XOMT090305 PD ◎◯◯△ △ ø43.0~ø50.0
SPMT11T308 PD XOMT11T306 PD ◎◯◯△ △ ø51.0~ø60.0
SPMT130410 PD XOMT130406 PD ◎◯◯△ △
SPMT15M510 PD XOMT15M508 PD ◎◯◯△ △
SPMT180510 PD XOMT180508 PD

▶ 인서트 재종 일람표 Insert material type list

Workpiece Meterial Symbol Color Cotting

P Steel KT510 Gold TiAlN
M Stainless Steel KT520 Black TiCN
K Cast Iron KT610 Gold TiAlN
KT620 Black TiCN
KT710 Gold TiAlN
KT720 Black TiCN

KOREA TECHNICS is The TOP of the world technics 11
