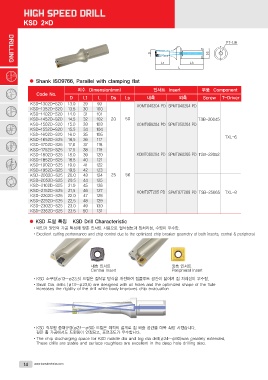

Page 16 - koreatechnics

KSD 2×D

DRILLING

● Shank ISO9766, Parallel with clamping flat

Code No. 치수 Dimension(mm) 인서트 Insert 부품 Component
KSD-1302D-S20
KSD-1352D-S20 D L1 L Ds Ls 내측 외측 Screw T-Driver
KSD-1402D-S20
KSD-1452D-S20 13.0 29 99 XOMT040204 PD SPMT040204 PD
KSD-1502D-S20 13.5 30 100
KSD-1552D-S20 14.0 31 101 50 TSB-20045
KSD-1602D-S20 14.5 32 102 20 56 XOMT050204 PD SPMT050204 PD
KSD-1652D-S25 15.0 33 103
KSD-1702D-S25 15.5 34 104 TXL-6
KSD-1752D-S25 16.0 35 105
KSD-1802D-S25 16.5 36 117 XOMT060204 PD SPMT060205 PD TSB-22052
KSD-1852D-S25 17.0 37 118
KSD-1902D-S25 17.5 38 119 XOMT07T205 PD SPMT07T208 PD TSB-25065 TXL-8
KSD-1952D-S25 18.0 39 120
KSD-2002D-S25 18.5 40 121
KSD-2052D-S25 19.0 41 122
KSD-2102D-S25 19.5 42 123
KSD-2152D-S25 20.0 43 124 25
KSD-2202D-S25 20.5 44 125
KSD-2252D-S25 21.0 45 126
KSD-2302D-S25 21.5 46 127
KSD-2352D-S25 22.0 47 128
22.5 48 129
23.0 49 130
23.5 50 131

● KSD 드릴 특징 KSD Drill Characteristic

•내인과 외인의 가공 특성에 맞춘 인서트 사용으로 절삭성능과 칩처리성, 수명이 우수함.
•Excellent cutting performance and chip control due to the optimized chip breaker geometry of both inserts, central & peripheral.

내측 인서트 외측 인서트
Central Insert Peripheral Insert

•KSD 소구경(ø13~ø23.5) 드릴은 절삭유 방식을 개선하여 칩플루트 공간이 넓어져 칩 처리성이 우수함.
•Small Dia. drills (ø13~ø23.5) are designed with oil holes and the optimized shape of the flute

increases the rigidity of the drill while body improves chip evacuation

•KSD 직부형 중대구경(ø24~ø60) 드릴은 최적의 설계로 칩 배출 공간을 대폭 확장 시켰습니다.
깊은 홀 가공에서도 드릴링이 안정되고, 표면조도가 우수합니다.

•The chip discharging space for KSD middle dia and big dia drill(ø24~ø60)was greately extended.
These drills are stable and surface roughless are excellent in the deep hole drilling also.
