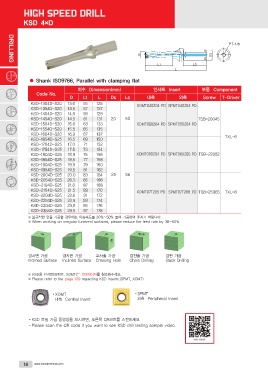

KSD 4×D

DRILLING

● Shank ISO9766, Parallel with clamping flat

Code No. 치수 Dimension(mm) 인서트 Insert 부품 Component
D L1 L Ds Ls 내측 외측 Screw T-Driver

KSD-1304D-S20 13.0 55 125 XOMT040204 PD SPMT040204 PD
KSD-1354D-S20 13.5 57 127 50 TSB-20045
KSD-1404D-S20 14.0 59 129
KSD-1454D-S20 14.5 61 131 20 XOMT050204 PD SPMT050204 PD
KSD-1504D-S20 15.0 63 133 TXL-6
KSD-1554D-S20 15.5 65 135
KSD-1604D-S20 16.0 67 137 XOMT060204 PD SPMT060205 PD TSB-22052
KSD-1654D-S25 16.5 69 150
KSD-1704D-S25 17.0 71 152 56
KSD-1754D-S25 17.5 73 154 XOMT07T205 PD SPMT07T208 PD TSB-25065 TXL-8
KSD-1804D-S25 18.0 75 156
KSD-1854D-S25 18.5 77 158
KSD-1904D-S25 19.0 79 160
KSD-1954D-S25 19.5 81 162
KSD-2004D-S25 20.0 83 164 25
KSD-2054D-S25 20.5 85 166
KSD-2104D-S25 21.0 87 168
KSD-2154D-S25 21.5 89 170
KSD-2204D-S25 22.0 91 172
KSD-2254D-S25 22.5 93 174
KSD-2304D-S25 23.0 95 176
KSD-2354D-S25 23.5 97 178

※ 불규칙한 면을 가공할 경우에는 이송속도를 30%~50% 줄여 가공하여 주시기 바랍니다.
※ When working on irregular (uneven) surfaces, please reduce the feed rate by 30~50%.

경사면 가공 경사면 가공 교차홀 가공 겹친홀 가공 겹판 가공
Inclined Surface Inclined Surface Crossing Hole Chain Drilling Stack Drilling

※ KSD용 인서트(SPMT, XOMT)는 109페이지를 참조해주세요.
※ Please refer to the page 109 regarding KSD inserts.(SPMT, XOMT)

•XOMT •SPMT
내측 Central Insert 외측 Peripheral Insert

•KSD 드릴 가공 동영상을 보시려면, 오른쪽 QR코드를 스캔하세요.
•Please scan the QR code if you want to see KSD drill testing sample video.
