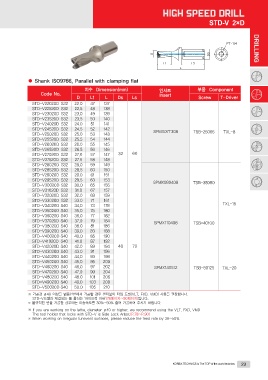

STD-V 2×D

DRILLING

● Shank ISO9766, Parallel with clamping flat

Code No. 치수 Dimension(mm) 인서트 부품 Component
STD-V22020D S32 Insert Screw T-Driver
STD-V22520D S32 D L1 L Ds Ls
STD-V23020D S32 60
STD-V23520D S32 22.0 47 137
STD-V24020D S32 22.5 48 138 70
STD-V24520D S32 23.0 49 139
STD-V25020D S32 23.5 50 140
STD-V25520D S32 24.0 51 141
STD-V26020D S32 24.5 52 142
STD-V26520D S32 25.0 53 143 SPMX07T308 TSB-25065 TXL-8
STD-V27020D S32
STD-V27520D S32 25.5 54 144
STD-V28020D S32 26.0 55 145
STD-V28520D S32 26.5 56 146
STD-V29020D S32 27.0 57 147 32
STD-V29520D S32 27.5 58 148
STD-V30020D S32 28.0 59 149
STD-V31020D S32 28.5 60 150
STD-V32020D S32 29.0 61 151
STD-V33020D S32 29.5 63 153
STD-V34020D S40 30.0 65 155 SPMX090408 TSB-35090
STD-V35020D S40
STD-V36020D S40 31.0 67 157 TXL-15
STD-V37020D S40 32.0 69 159
STD-V38020D S40 33.0 71 161
STD-V39020D S40 34.0 73 178
STD-V40020D S40 35.0 75 180
STD-V41020D S40 36.0 77 182
STD-V42020D S40 37.0 79 184
STD-V43020D S40 38.0 81 186 SPMX110408 TSB-40100
STD-V44020D S40
STD-V45020D S40 39.0 83 188
STD-V46020D S40 40.0 85 190
STD-V47020D S40 41.0 87 192
STD-V48020D S40 42.0 89 194 40
STD-V49020D S40 43.0 91 196
STD-V50020D S40 44.0 93 198
45.0 95 200
46.0 97 202
47.0 99 204 SPMX140512 TSB-50125 TXL-20

48.0 101 206
49.0 103 208
50.0 105 210

※ 가공경 ø40 이상을 범용선반에서 가공할 경우 센터붙이 타입 드릴(VLT, FXD, VMD) 사용을 권장합니다.
STD-V드릴과 체결되는 툴 홀더는 '사이드락 아버'(78페이지~90페이지)입니다.

※ 불규칙한 면을 가공할 경우에는 이송속도를 30%~50% 줄여 가공하여 주시기 바랍니다.

※ If you are working on the lathe, diameter ø40 or higher, we recommend using the VLT, FXD, VMD
The tool holder that locks with STD-V is Side Lock Arbor.(P.78~P.90)

※ When working on irregular (uneven) surfaces, please reduce the feed rate by 30~50%.

KOREA TECHNICS is The TOP of the world technics 23
