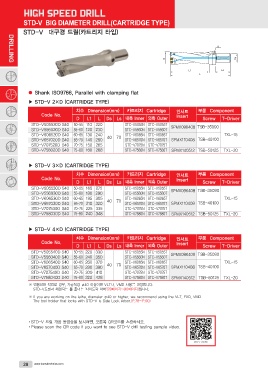

DRILLING STD-V BIG DIAMETER DRILL(CARTRIDGE TYPE)

STD-V 대구경 드릴(카트리지 타입)

● Shank ISO9766, Parallel with clamping flat

▶ STD-V 2×D (CARTRIDGE TYPE)

Code No. 치수 Dimension(mm) 카트리지 Cartridge 인서트 부품 Component
STD-V505520D S40 D L1 L Ds Ls 내측 Inner 외측 Outer Insert Screw T-Driver
STD-V556020D S40
STD-V606520D S40 50-55 110 220 STC-V5055N STC-V5055T SPMX090408 TSB-35090
STD-V657020D S40 55-60 120 230 STC-V5560N STC-V5560T
STD-V707520D S40 60-65 130 240 STC-V6065N STC-V6065T TXL-15
STD-V758020D S40 65-70 140 260 40 70 STC-V6570N STC-V6570T SPMX110408 TSB-40100

70-75 150 265 STC-V7075N STC-V7075T
75-80 160 268 STC-V7580N STC-V7580T SPMX140512 TSB-50125 TXL-20

▶ STD-V 3×D (CARTRIDGE TYPE)

Code No. 치수 Dimension(mm) 카트리지 Cartridge 인서트 부품 Component
STD-V505530D S40 D L1 L Ds Ls 내측 Inner 외측 Outer Insert Screw T-Driver
STD-V556030D S40
STD-V606530D S40 50-55 165 275 STC-V5055N STC-V5055T SPMX090408 TSB-35090
STD-V657030D S40 55-60 180 290 STC-V5560N STC-V5560T
STD-V707530D S40 60-65 195 305 STC-V6065N STC-V6065T TXL-15
STD-V758030D S40 65-70 210 320 40 70 STC-V6570N STC-V6570T SPMX110408 TSB-40100

70-75 225 335 STC-V7075N STC-V7075T
75-80 240 348 STC-V7580N STC-V7580T SPMX140512 TSB-50125 TXL-20

▶ STD-V 4×D (CARTRIDGE TYPE)

Code No. 치수 Dimension(mm) 카트리지 Cartridge 인서트 부품 Component
STD-V505540D S40 D L1 L Ds Ls 내측 Inner 외측 Outer Insert Screw T-Driver
STD-V556040D S40
STD-V606540D S40 50-55 220 330 STC-V5055N STC-V5055T SPMX090408 TSB-35090
STD-V657040D S40 55-60 240 350 STC-V5560N STC-V5560T
STD-V707540D S40 60-65 260 370 STC-V6065N STC-V6065T TXL-15
STD-V758040D S40 65-70 280 390 40 70 STC-V6570N STC-V6570T SPMX110408 TSB-40100

70-75 300 410 STC-V7075N STC-V7075T
75-80 320 428 STC-V7580N STC-V7580T SPMX140512 TSB-50125 TXL-20

※ 범용선반 작업할 경우, 가공직경 ø40 이상이면 VLT나, VMD 사용을 권장합니다.
STD-V드릴과 체결되는 툴 홀더는 '사이드락 아버'(78페이지~90페이지)입니다.

※ If you are working on the lathe, diameter ø40 or higher, we recommend using the VLT, FXD, VMD
The tool holder that locks with STD-V is Side Lock Arbor.(P.78~P.90)

•STD-V 드릴 가공 동영상을 보시려면, 오른쪽 QR코드를 스캔하세요.
•Please scan the QR code if you want to see STD-V drill testing sample video.
