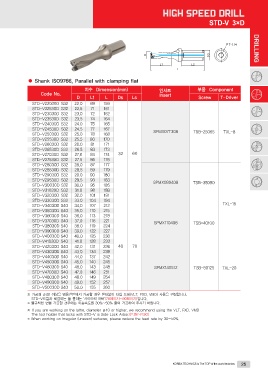

STD-V 3×D

DRILLING

● Shank ISO9766, Parallel with clamping flat

Code No. 치수 Dimension(mm) 인서트 부품 Component
Insert Screw T-Driver
STD-V22030D S32 D L1 L Ds Ls SPMX07T308 TSB-25065 TXL-8
STD-V22530D S32 60
STD-V23030D S32 22.0 69 159 SPMX090408 TSB-35090
STD-V23530D S32 22.5 71 161 70 SPMX110408 TXL-15
STD-V24030D S32 23.0 72 162 SPMX140512
STD-V24530D S32 23.5 74 164 TSB-40100
STD-V25030D S32 24.0 75 165
STD-V25530D S32 24.5 77 167 TSB-50125 TXL-20
STD-V26030D S32 25.0 78 168
STD-V26530D S32 25.5 80 170
STD-V27030D S32 26.0 81 171
STD-V27530D S32 26.5 83 173
STD-V28030D S32 27.0 84 174 32
STD-V28530D S32 27.5 86 176
STD-V29030D S32 28.0 87 177
STD-V29530D S32 28.5 89 179
STD-V30030D S32 29.0 90 180
STD-V31030D S32 29.5 93 183
STD-V32030D S32 30.0 95 185
STD-V33030D S32 31.0 98 188
STD-V34030D S40 32.0 101 191
STD-V35030D S40 33.0 104 194
STD-V36030D S40 34.0 107 212
STD-V37030D S40 35.0 110 215
STD-V38030D S40 36.0 113 218
STD-V39030D S40 37.0 116 221
STD-V40030D S40 38.0 119 224
STD-V41030D S40 39.0 122 227
STD-V42030D S40 40.0 125 230
STD-V43030D S40 41.0 128 233
STD-V44030D S40 42.0 131 236 40
STD-V45030D S40 43.0 134 239
STD-V46030D S40 44.0 137 242
STD-V47030D S40 45.0 140 245
STD-V48030D S40 46.0 143 248
STD-V49030D S40 47.0 146 251
STD-V50030D S40 48.0 149 254
49.0 152 257
50.0 155 260

※ 가공경 ø40 이상을 범용선반에서 가공할 경우 센터붙이 타입 드릴(VLT, FXD, VMD) 사용을 권장합니다.
STD-V드릴과 체결되는 툴 홀더는 '사이드락 아버'(78페이지~90페이지)입니다.

※ 불규칙한 면을 가공할 경우에는 이송속도를 30%~50% 줄여 가공하여 주시기 바랍니다.

※ If you are working on the lathe, diameter ø40 or higher, we recommend using the VLT, FXD, VMD
The tool holder that locks with STD-V is Side Lock Arbor.(P.78~P.90)

※ When working on irregular (uneven) surfaces, please reduce the feed rate by 30~50%.

KOREA TECHNICS is The TOP of the world technics 25
