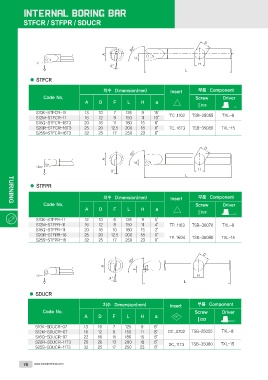

STFCR / STFPR / SDUCR

● STFCR 치수 Dimension(mm) Insert 부품 Component
Code No. ADF LHa
Screw Driver
S10K-STFCR-11
S12M-STFCR-11 13 10 7 125 9 15° TC..1102 TSB-25055 TXL-8
S16Q-STFCR-16T3 16 12 9 150 11 10°
S20R-STFCR-16T3 20 16 11 180 15 6°
S25S-STFCR-16T3 25 20 12.5 200 18 6° TC..16T3 TSB-35080 TXL-15
32 25 17 250 23 6°

TURNING ● STFPR 치수 Dimension(mm) Insert 부품 Component
Code No. ADF LHa
Screw Driver
S10K-STFPR-11
S12M-STFPR-11 12 10 6 125 9 5°
S16Q-STFPR-11 16 12 8 150 11 4° TP..1103 TSB-30070 TXL-8
S20R-STFPR-16 20 16 10 180 15 2°
S25S-STFPR-16 25 20 12.5 200 18 0°
32 25 17 250 23 0° TP..1604 TSB-35080 TXL-15

● SDUCR 치수 Dimension(mm) Insert 부품 Component
Code No. ADF LHa
Screw Driver
S10K-SDUCR-07
S12M-SDUCR-07 13 10 7 125 9 8° TXL-8
S16Q-SDUCR-07 16 12 9 150 11 8° DC..0702 TSB-25055
S20R-SDUCR-11T3 22 16 11 180 15 6°
S25S-SDUCR-11T3 25 20 13 200 18 6°
32 25 17 250 23 6° DC..11T3 TSB-35080 TXL-15
