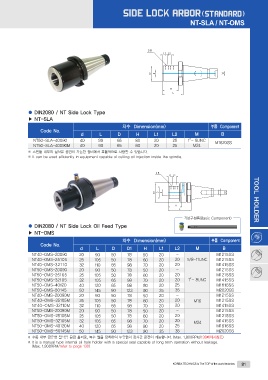

NT-SLA / NT-OMS

● DIN2080 / NT Side Lock Type
▶ NT-SLA

Code No. 치수 Dimension(mm) M 부품 Component
d L D H L1 L2 1″- 8UNC B

NT50-SLA-40090 40 90 65 80 20 25 M24 M1620SS
NT50-SLA-40090M 40 90 65 80 20 25

※ 스핀들 내부의 절삭유 공급이 가능한 장비에서 효율적으로 사용할 수 있습니다.
※ It can be used efficiently in equipment capable of cutting oil injection inside the spindle.

기본구성품(Basic Component) TOOL HOLDER

● DIN2080 / NT Side Lock Oil Feed Type
▶ NT-OMS

Code No. 치수 Dimension(mm) 부품 Component
d L D D1 H L1 L2 MB

NT40-OMS-20090 20 90 50 78 50 20 - M1215SS
25 105 50 78 60 20 20 5/8-11UNC M1215SS
NT40-OMS-25105 32 110 65 98 70 20 20
NT40-OMS-32110 M1415SS
NT50-OMS-20090 - M1215SS
20 90 50 78 50 20
NT50-OMS-25105 25 105 50 78 60 20 20 M1215SS
NT50-OMS-32105 20 1″- 8UNC M1415SS
32 105 65 98 70 20
NT50-OMS-40120 40 120 65 98 80 20 25 M1616SS
NT50-OMS-50145 50 145 90 123 90 35 35 M2020SS
NT40-OMS-20090M 20 90 50 78 50 20 - M1215SS
NT40-OMS-25105M 25 105 50 78 60 20 20
NT40-OMS-32110M 32 110 65 98 70 20 20 M16 M1215SS
M1415SS
NT50-OMS-20090M 20 90 50 78 50 20 - M1215SS
NT50-OMS-25105M 25 105 50 78 60 20 20
NT50-OMS-32105M 32 105 65 98 70 20 20 M1215SS
NT50-OMS-40120M 40 120 65 98 80 20 25 M1415SS
M24 M1616SS

NT50-OMS-50145M 50 145 90 123 90 35 35 M2020SS

※ 수동 내부 급유형 절삭유 공급 홀더로, 특수 씰을 장착하여 누유없이 장시간 운전이 가능합니다. (Max. 1,800RPM/138페이지참조)

※ It is a manual type internal oil hole holder with a special seal capable of long term operation without leakage.
(Max. 1,800RPM/refer to page 138)
