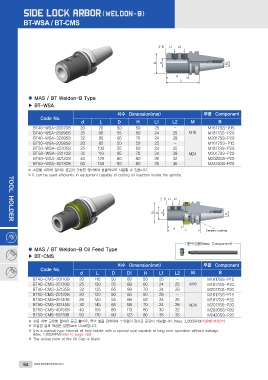

BT-WSA / BT-CMS

● MAS / BT Weldon-B Type
▶ BT-WSA

Code No. 치수 Dimension(mm) M 부품 Component
d L D H L1 L2 M16
B
BT40-WSA-20070B 20 70 50 50 25 - M24 M1617SS-P15
BT40-WSA-25090B 25 90 55 60 24 25 M1817SS-P20
BT40-WSA-32095B 32 95 65 70 24 28 M2017SS-P20
BT50-WSA-20085B 20 85 50 50 25 - M1617SS-P15
BT50-WSA-25105B 25 105 55 60 24 25 M1817SS-P20
BT50-WSA-32110B 32 110 65 70 24 28 M2017SS-P20
BT50-WSA-40120B 40 120 80 80 30 32 M2020SS-P20
BT50-WSA-50130B 50 130 90 80 35 35 M2420SS-P20

TOOL HOLDER ※ 스핀들 내부의 절삭유 공급이 가능한 장비에서 효율적으로 사용할 수 있습니다.
※ It can be used efficiently in equipment capable of cutting oil injection inside the spindle.

기본구성품(Basic Component)

● MAS / BT Weldon-B Oil Feed Type
▶ BT-CMS

Code No. 치수 Dimension(mm) 부품 Component

d L D D1 H L1 L2 M B

BT40-CMS-20110B 20 110 50 83 50 25 - M1617SS-P15
BT40-CMS-25130B 25 130 55 88 60 24 25 M16
BT40-CMS-32135B 32 135 65 98 70 24 28 M1817SS-P20
M2017SS-P20
BT50-CMS-20120B 20 120 50 83 50 25 - M1617SS-P15
BT50-CMS-25140B 25 140 55 88 62 24 25
BT50-CMS-32145B 32 145 65 98 70 24 28 M24 M1817SS-P20
M2017SS-P20
BT50-CMS-40155B 40 155 80 113 80 30 32 M2020SS-P20
BT50-CMS-50170B 50 170 90 123 80 35 35
M2420SS-P20

※ 수동 내부 급유형 절삭유 공급 홀더로, 특수 씰을 장착하여 누유없이 장시간 운전이 가능합니다. (Max. 2,000RPM/138페이지참조)
※ 오일캡 실제 색상은 검정(lack Oxid)입니다.
※ It is a manual type internal oil hole holder with a special seal capable of long term operation without leakage.

(Max. 2,000RPM/refer to page 138)
※ The actual color of the Oil Cap is black
