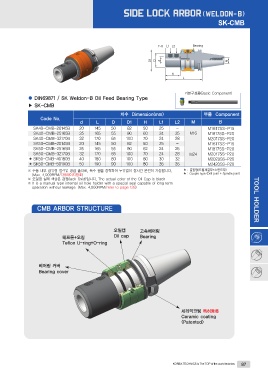

SK-CMB

● DIN69871 / SK Weldon-B Oil Feed Bearing Type 기본구성품(Basic Component)
▶ SK-CMB

Code No. 치수 Dimension(mm) 부품 Component
SK40-CMB-20145B
SK40-CMB-25165B d L D D1 H L1 L2 MB
SK40-CMB-32170B 20 - M1617SS-P15
SK50-CMB-20145B 25 145 50 82 50 25 25
SK50-CMB-25165B 32 165 55 90 60 24 28 M16 M1817SS-P20
SK50-CMB-32170B 20 170 65 100 70 24 - M2017SS-P20
★ SK50-CMB-40180B 25 145 50 82 50 25 25 M1617SS-P15
★ SK50-CMB-50190B 32 165 55 90 62 24 28 M1817SS-P20
40 170 65 100 70 24 32
50 180 80 100 80 30 35 M24 M2017SS-P20
190 90 100 80 35 M2020SS-P20
M2420SS-P20
※ 수동 내부 급유형 절삭유 공급 홀더로, 특수 씰을 장착하여 누유없이 장시간 운전이 가능합니다.
(Max. 4,000RPM/138페이지참조) ★ : 결합형(드릴체결부+스핀드부)
★ : Couple type (Drill joint + Spindle joint)
※ 오일캡 실제 색상은 검정(lack Oxid)입니다. The actual color of the Oil Cap is black
※ It is a manual type internal oil hole holder with a special seal capable of long term TOOL HOLDER

operation without leakage. (Max. 4,000RPM/refer to page 138)

CMB ARBOR STRUCTURE

테프론+오링 오일캡 고속베어링
Teflon U-ring+O-ring Oil cap Bearing

베어링 커버
Bearing cover

세라믹코팅 특허등록
Ceramic coating
<Patented>
