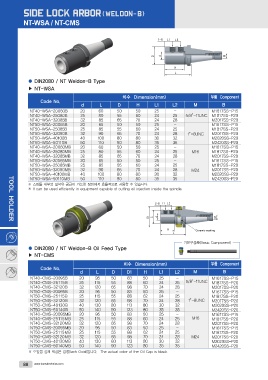

NT-WSA / NT-CMS

● DIN2080 / NT Weldon-B Type
▶ NT-WSA

Code No. 치수 Dimension(mm) 부품 Component

d L D H L1 L2 M B

NT40-WSA-20060B 20 60 50 50 25 - M1617SS-P15
NT40-WSA-25080B 25 80 55 60 24 25 5/8″-11UNC M1817SS-P20
NT40-WSA-32085B 32 85 65 70 24 28 M2017SS-P20
NT50-WSA-20065B 20 65 50 50 25 - M1617SS-P15
NT50-WSA-25085B 25 85 55 60 24 25 M1817SS-P20
NT50-WSA-32090B 32 90 65 70 24 28 1″-8UNC M2017SS-P20
NT50-WSA-40100B 40 100 80 80 30 32 M2020SS-P20
NT50-WSA-50110B 50 110 90 80 35 35 M2420SS-P20
NT40-WSA-20060MB 20 60 50 50 25 - M1617SS-P15
NT40-WSA-25080MB 25 80 55 60 24 25 M16 M1817SS-P20
NT40-WSA-32085MB 32 85 65 70 24 28 M2017SS-P20
NT50-WSA-20065MB 20 65 50 50 25 - M1617SS-P15
NT50-WSA-25085MB 25 85 55 60 24 25 M1817SS-P20
NT50-WSA-32090MB 32 90 65 70 24 28 M24 M2017SS-P20
NT50-WSA-40100MB 40 100 80 80 30 32 M2020SS-P20
TOOL HOLDER NT50-WSA-50110MB 50 110 90 80 35 35 M2420SS-P20

※ 스핀들 내부의 절삭유 공급이 가능한 장비에서 효율적으로 사용할 수 있습니다.
※ It can be used efficiently in equipment capable of cutting oil injection inside the spindle.

기본구성품(Basic Component)

● DIN2080 / NT Weldon-B Oil Feed Type
▶ NT-CMS

Code No. 치수 Dimension(mm) 부품 Component
d L D D1 H L1
L2 M B

NT40-CMS-20095B 20 95 50 83 50 25 - 5/8″-11UNC M1617SS-P15
NT40-CMS-25115B 25 115 55 88 60 24 25 M1817SS-P20
NT40-CMS-32120B 32 120 65 98 70 24 28 M2017SS-P20
NT50-CMS-20095B 20 95 50 83 50 25 - M1617SS-P15
NT50-CMS-25115B 25 115 55 88 62 24 25 M1817SS-P20
NT50-CMS-32120B 32 120 65 98 70 24 28 1″-8UNC M2017SS-P20
NT50-CMS-40130B 40 130 80 113 80 30 32 M2020SS-P20
NT50-CMS-50140B 50 140 90 123 80 35 35 M2420SS-P20
NT40-CMS-20095MB 20 95 50 83 50 25 - M1617SS-P15
NT40-CMS-25115MB 25 115 55 88 60 24 25 M16 M1817SS-P20
NT40-CMS-32120MB 32 120 65 98 70 24 28 M2017SS-P20
NT50-CMS-20095MB 20 95 50 83 50 25 - M1617SS-P15
NT50-CMS-25115MB 25 115 55 88 62 24 25 M1817SS-P20
NT50-CMS-32120MB 32 120 65 98 70 24 28 M24 M2017SS-P20
NT50-CMS-40130MB 40 130 80 113 80 30 32 M2020SS-P20
NT50-CMS-50140MB 50 140 90 123 80 35 35 M2420SS-P20

※ 오일캡 실제 색상은 검정(lack Oxid)입니다. The actual color of the Oil Cap is black
