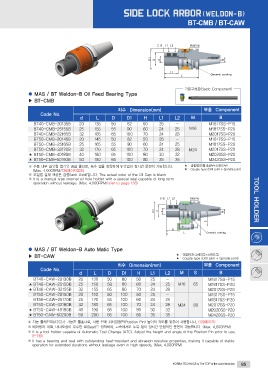

BT-CMB / BT-CAW

● MAS / BT Weldon-B Oil Feed Bearing Type 기본구성품(Basic Component)
▶ BT-CMB

Code No. 치수 Dimension(mm) 부품 Component
d L D D1 H L1 L2
MB

BT40-CMB-20135B 20 135 50 82 50 25 - M16 M1617SS-P15
BT40-CMB-25155B 25 155 55 90 60 24 25 M24 M1817SS-P20
BT40-CMB-32165B 32 165 65 100 70 24 28 M2017SS-P20
BT50-CMB-20145B 20 145 50 82 50 25 - M1617SS-P15
BT50-CMB-25165B 25 165 55 90 60 24 25 M1817SS-P20
BT50-CMB-32170B 32 170 65 100 70 24 28 M2017SS-P20
★ BT50-CMB-40180B 40 180 65 100 80 30 32 M2020SS-P20
★ BT50-CMB-50190B 50 190 65 100 80 35 35 M2420SS-P20

※ 수동 내부 급유형 절삭유 공급 홀더로, 특수 씰을 장착하여 누유없이 장시간 운전이 가능합니다. ★ : 결합형(드릴체결부+스핀드부)
(Max. 4,000RPM/138페이지참조) ★ : Couple type (Drill joint + Spindle joint)

※ 오일캡 실제 색상은 검정(lack Oxid)입니다. The actual color of the Oil Cap is black TOOL HOLDER
※ It is a manual type internal oil hole holder with a special seal capable of long term

operation without leakage. (Max. 4,000RPM/refer to page 138)

● MAS / BT Weldon-B Auto Matic Type ★ : 결합형(드릴체결부+스핀드부)
▶ BT-CAW ★ : Couple type (Drill joint + Spindle joint)

Code No. 치수 Dimension(mm) 부품 Component

d L D D1 H L1 L2 M S B

BT40-CAW-20130B 20 130 50 80 50 25 - M1617SS-P15
★ BT40-CAW-25150B 25 150 58 80 60 24 25 M16 65 M1817SS-P20
★ BT40-CAW-32155B 32 155 65 80 70 24 28 M2017SS-P20
- M1617SS-P15
BT50-CAW-20150B 20 150 50 100 50 25 25 M1817SS-P20
BT50-CAW-25170B 25 170 55 100 60 24 28 M24 80 M2017SS-P20
BT50-CAW-32180B 32 180 65 100 70 24 32 M2020SS-P20
★ BT50-CAW-40190B 40 190 65 100 80 30 35 M2420SS-P20
★ BT50-CAW-50200B 50 200 65 100 80 35

※ 자동 툴체인지(ATC)가 가능한 툴홀더로, 사용 전에 위치결정핀(Position Pin) 높이와 각도를 맞추어 사용합니다. (139페이지)
※ 베어링과 내열, 내마모성이 우수한 씰(Seal)을 장착하여, 고속에서도 누유 없이 장시간 안정적인 운전이 가능합니다. (Max. 4,000RPM)
※ It is a tool holder capable of Automatic Tool Change (ATC). Adjust the height and angle of the Position Pin prior to use.

(P.139)
※ It has a bearing and seal with outstanding heat-resistant and abrasion resistive properties, making it capable of stable

operation for extended durations without leakage even in high speeds. (Max. 4,000RPM)

KOREA TECHNICS is The TOP of the world technics 85
