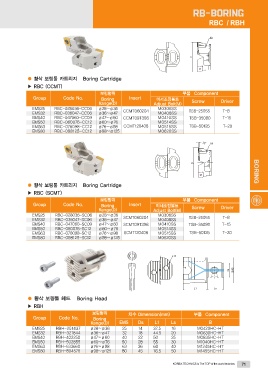

RBC / RBH

● 황삭 보링툴 카트리지 Boring Cartridge

▶ RBC (CCMT)

Group Code No. 보링범위 Insert 부품 Component
EMS25 RBC-028036-CC06
EMS32 RBC-036047-CC06 Boring 미세조정볼트 Screw Driver
EMS40 RBC-047060-CC09 Range(D) Adjust Bolt(M)
EMS50 RBC-060076-CC12 TSB-25055 T-8
EMS63 RBC-076098-CC12 ø28~ø36 CCMT060204 M0306SS TSB-35080 T-15
EMS80 RBC-098125-CC12 ø36~ø47 M0408SS TSB-50125 T-20
ø47~ø60 CCMT09T308 M0410SS
ø60~ø76 M0514SS
ø76~ø98 CCMT120408 M0515SS
ø98~ø125 M0620SS

● 황삭 보링툴 카트리지 Boring Cartridge BORING

▶ RBC (SCMT)

Group Code No. 보링범위 Insert 부품 Component
EMS25 RBC-028036-SC06 Boring
EMS32 RBC-036047-SC06 Range(D) 미세조정볼트 Screw Driver
EMS40 RBC-047060-SC09 Adjust Bolt(M)
EMS50 RBC-060076-SC12 ø28~ø36 M0306SS
EMS63 RBC-076098-SC12 ø36~ø47 SCMT060204 M0408SS TSB-25055 T-8
EMS80 RBC-098125-SC12 M0410SS TSB-35080 T-15
ø47~ø60 SCMT09T308 M0514SS
ø60~ø76 M0515SS TSB-50125 T-20
ø76~ø98 SCMT120408 M0620SS
ø98~ø125

● 황삭 보링툴 헤드 Boring Head

▶ RBH

Group Code No. 보링범위 치수 Dimension(mm) 부품 Component
EMS25 RBH-251437
EMS32 RBH-321844 Boring EMS Ds L1 Ls B
EMS40 RBH-402250 Range(D) M0420HC-HT
EMS50 RBH-502855 ø28~ø36 25 14 37.5 16 M0630HC-HT
EMS63 RBH-633660 ø36~ø47 32 18 44.5 20 M0835HC-HT
EMS80 RBH-804576 ø47~ø60 40 22 50 25 M1040HC-HT
ø60~ø76 50 28 55 30 M1245HC-HT
ø76~ø98 63 36 60 40 M1455HC-HT
ø98~ø125 80 45 76.5 50
