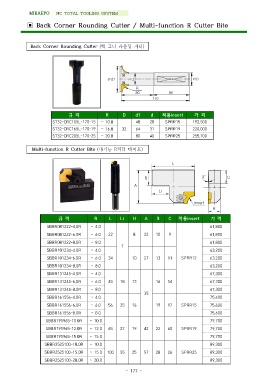

MIRAEPO NC TOTAL TOOLING SYSTEM

▣ Back Corner Rounding Cutter / Multi-function R Cutter Bite

Back Corner Rounding Cutter (백 코너 라운딩 커터)

∅d1 ∅d ∅D

R 90
80 170

규격 R D d1 d 적용insert 가 격

ST32-CRC105L-170-15 ~ 10.0 48 28 SPRR15 192,500

ST32-CRC165L-170-19 ~ 16.0 32 64 31 SPRR19 220,000

ST32-CRC205L-170-25 ~ 20.0 80 40 SPRR25 255,700

Multi-function R Cutter Bite (다기능 R커터 바이트)

L

B 3° C
A

L1

insert

H

규격 R L L1 H A B C 적용insert 가격
61,800
SBBR081222-4.0R ~ 4.0 61,800
61,800
SBBR081222-6.0R ~ 6.0 22 8 22 10 9 63,200
63,200
SBBR081222-8.0R ~ 8.0 7 63,200
SBBR101234-4.0R ~ 4.0 67,300
67,300
SBBR101234-6.0R ~ 6.0 34 10 27 13 11 SPRR12 67,300
75,600
SBBR101234-8.0R ~ 8.0 75,600
75,600
SBBR131245-4.0R ~ 4.0 79,700
79,700
SBBR131245-6.0R ~ 6.0 45 18 13 16 14 79,700
89,300
SBBR131245-8.0R ~ 8.0 35 89,300
SBBR161556-4.0R ~ 4.0 89,300

SBBR161556-6.0R ~ 6.0 56 25 16 19 17 SPRR15

SBBR161556-8.0R ~ 8.0

SBBR191965-10.0R ~ 10.0

SBBR191965-12.0R ~ 12.0 65 27 19 42 22 60 SPRR19

SBBR191965-15.0R ~ 15.0

SBBR2525100-10.0R ~ 10.0

SBBR2525100-15.0R ~ 15.0 100 55 25 57 28 26 SPRR25

SBBR2525100-20.0R ~ 20.0

- 177 -
