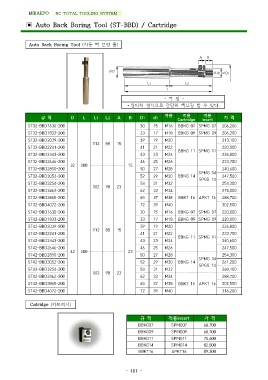

MIRAEPO NC TOTAL TOOLING SYSTEM

▣ Auto Back Boring Tool (ST-BBD) / Cartridge

Auto Back Boring Tool (자동 백 보링 툴)

AB

∅D ∅d1 ∅D1

L1 L2
L

-특징-
∙원터치 형식으로 간단히 백보링 할 수 있다.

규격 D L L1 L2 A B D1 d1 적용 적용 적용 가격
Cartridge insert

ST32-BBD1630-200 30 15 M16 BBKG 07 SPMG 07 206,200

ST32-BBD1833-200 33 17 M18 BBKG 09 SPMG 09 206,200

ST32-BBD2039-200 112 88 15 39 19 M20 213,100
ST32-BBD2241-200 41
21 M22 BBKG 11 SPMG 11 220,000

ST32-BBD2443-200 43 23 M24 226,800

ST32-BBD2646-200 46 25 M26 233,700
32 200 15
27 M28 SPMG 14 240,600
ST32-BBD2850-200 50

ST32-BBD3052-200 52 29 M30 BBKG 14 SPGG 14 247,500

ST32-BBD3254-200 102 98 23 54 31 M32 254,300
ST32-BBD3462-200 62
33 M34 275,000

ST32-BBD3865-200 65 37 M38 BBKT 16 APKT 16 288,700

ST32-BBD4072-200 72 39 M40 302,500

ST42-BBD1630-200 30 15 M16 BBKG 07 SPMG 07 220,000

ST42-BBD1833-200 33 17 M18 BBKG 09 SPMG 09 220,000

ST42-BBD2039-200 112 88 15 39 19 M20 226,800
ST42-BBD2241-200 41
21 M22 BBKG 11 SPMG 11 233,700

ST42-BBD2443-200 43 23 M24 240,600
ST42-BBD2646-200 46
23 25 M26 247,500
42 200 50
ST42-BBD2850-200 27 M28 SPMG 14 254,300

ST42-BBD3052-200 52 29 M30 BBKG 14 SPGG 14 261,200

ST42-BBD3254-200 102 98 23 54 31 M32 268,100
ST42-BBD3462-200 62
33 M34 288,700

ST42-BBD3865-200 65 37 M38 BBKT 16 APKT 16 302,500

ST42-BBD4072-200 72 39 M40 316,200

Catridge (카트리지)

규격 적용insert 가격
BBKG07 SPMG07 68,700
BBKG09 SPMG09 68,700
BBKG11 SPMG11 75,600
BBKG14 SPMG14 82,500
BBKT16 APKT16 89,300
