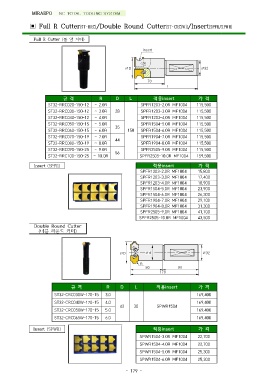

MIRAEPO NC TOTAL TOOLING SYSTEM

▣ Full R Cutter(ST-RRC)/Double Round Cutter(ST-CRC(W))/Insert(SPFR/SPWR)

Full R Cutter (풀 알 커터)

insert

∅D ∅32

70
L

규격 R D L 적용insert 가격
ST32-RRC020-150-12 ~ 2.0R 28 SPFR1203-2.0R MF1004 115,500
ST32-RRC030-150-12 ~ 3.0R SPFR1203-3.0R MF1004 115,500
ST32-RRC040-150-12 ~ 4.0R 35 SPFR1203-4.0R MF1004 115,500
ST32-RRC050-150-15 ~ 5.0R 44 SPFR1504-5.0R MF1004 115,500
ST32-RRC060-150-15 ~ 6.0R 56 115,500
ST32-RRC070-150-19 ~ 7.0R 150 SPFR1504-6.0R MF1004 115,500
ST32-RRC080-150-19 ~ 8.0R SPFR1904-7.0R MF1004 115,500
ST32-RRC090-150-25 ~ 9.0R SPFR1904-8.0R MF1004 115,500
ST32-RRC100-150-25 ~ 10.0R SPFR2505-9.0R MF1004 159,500
SPFR2505-10.0R MF1004
Insert (SPFR) 가격
적용insert 15,800
SPFR1203-2.0R MF1004 17,400
SPFR1203-3.0R MF1004 18,900
SPFR1203-4.0R MF1004 23,900
SPFR1504-5.0R MF1004 26,300
SPFR1504-6.0R MF1004 29,100
SPFR1904-7.0R MF1004 31,300
SPFR1904-8.0R MF1004 41,700
SPFR2505-9.0R MF1004 43,500
SPFR2505-10.0R MF1004

Double Round Cutter
(더블 라운드 커터)

∅D ∅d ∅32

R 90
80

170

규격 R DL 적용insert 가격
ST32-CRC030W-170-15 3.0 42 30 SPWR1504 169,400
ST32-CRC040W-170-15 4.0 169,400
ST32-CRC050W-170-15 5.0 169,400
ST32-CRC065W-170-15 6.0 169,400

Insert (SPWR) 적용insert 가격
SPWR1504-3.0R MF1004 22,700
SPWR1504-4.0R MF1004 22,700
SPWR1504-5.0R MF1004 25,300
SPWR1504-6.0R MF1004 25,300

- 179 -
