MIRAEPO NC TOTAL TOOLING SYSTEM

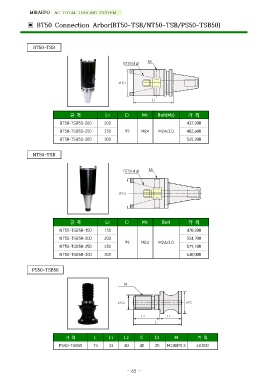

▣ BT50 Connection Arbor(BT50-TSB/NT50-TSB/PS50-TSB50)
BT50-TSB
BT50체결 M1
∅C1
L1
규격 L1 C1 M1 Bolt(M2) 가격
BT50-TSB50-200 200
BT50-TSB50-250 250 437,200
BT50-TSB50-300 300
99 M24 M24x3.0 482,600
525,200
NT50-TSB
BT50체결 M1
∅C1
규격 L1 C1 M1 Bolt 가격
NT50-TSB50-150 150 470,200
NT50-TSB50-200 200 99 M24 M24x3.0 524,700
NT50-TSB50-250 250 579,100
NT50-TSB50-300 300 630,000
PS50-TSB50
M
∅C1 ∅C
L2 L1
L
규격 L L1 L2 C C1 M 가격
PS50-TSB50 73 33 40 40 25 M24XP0.3 60,500
