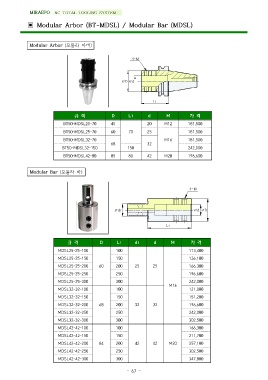

MIRAEPO NC TOTAL TOOLING SYSTEM
▣ Modular Arbor (BT-MDSL) / Modular Bar (MDSL)
Modular Arbor (모듈라 아버)
4-M
∅D ∅d
규격 D L1 L1 가격
BT50-MDSL20-70 45 181,500
BT50-MDSL25-70 60 70 dM 181,500
BT50-MDSL32-70 20 M12 181,500
BT50-MDSL32-150 68 25 242,000
BT50-MDSL42-80 150 196,600
M16
Modular Bar (모듈라 바) 85 80 32 4-M
42 M20
∅d1 ∅d ∅D
L1
규격 D L1 d1 dM 가격
MDSL25-25-100 100 113,400
MDSL25-25-150 150 136,100
MDSL25-25-200 60 200 25 25 166,300
MDSL25-25-250 250 196,600
MDSL25-25-300 300 242,000
M16
MDSL32-32-100 100
121,000
MDSL32-32-150 150 151,200
MDSL32-32-200 68 200 32 32 196,600
MDSL32-32-250 250 242,000
MDSL32-32-300 300 302,500
MDSL42-42-100 100 166,300
MDSL42-42-150 150 211,700
MDSL42-42-200 84 200 42 42 M20 257,100
MDSL42-42-250 250 302,500
MDSL42-42-300 300 347,800
- 67 -
