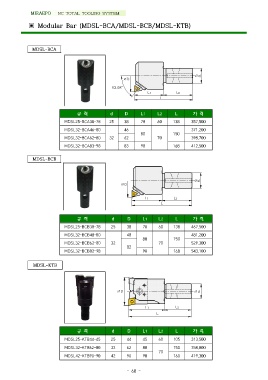

MIRAEPO NC TOTAL TOOLING SYSTEM

▣ Modular Bar (MDSL-BCA/MDSL-BCB/MDSL-KTB)

MDSL-BCA

∅D ∅d
53.08°

L1 L2
L

규격 dD L1 L2 L 가격

MDSL25-BCA38-78 25 38 78 60 138 357,500

MDSL32-BCA46-80 46 80 150 371,200

MDSL32-BCA62-80 32 62 70 398,700

MDSL32-BCA83-98 83 98 168 412,500

MDSL-BCB

∅d
∅D

L1 L2
L

규격 d D L1 L2 L 가격

MDSL25-BCB38-78 25 38 78 60 138 467,500

MDSL32-BCB48-80 48 80 150 481,200

MDSL32-BCB62-80 32 82 70 529,300

MDSL32-BCB82-98 98 168 543,100

MDSL-KTB

∅D ∅d

L1 L2
L

규격 d D L1 L2 L 가격

MDSL25-KTB44-45 25 44 45 60 105 313,500

MDSL32-KTB62-80 32 62 80 150 358,800

70

MDSL42-KTB90-90 42 90 90 160 419,300

- 68 -
