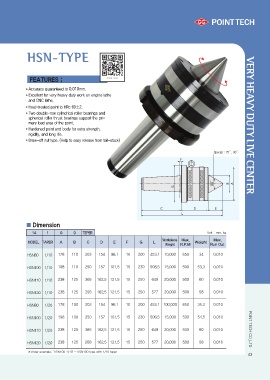

HSN-TYPE VERY HEAVY DUTY LIVE CENTER

FEATURES ;

• Accuracy guaranteed to 0.010mm.
• Excellent for very heavy duty work on engine lathe

and CNC lathe.
• Heat-treated point to HRc 60±2.
• Two double-row cylindrical roller bearings and

spherical roller thrust bearings support the pri-
mary load area of the point.
• Hardened point and body for extra strength,
rigidity, and long life.
• Draw-off nut type. (Help to easy release from tail-stock)

Special : 75˚, 90˚
F

G
B
A

C DE
L

Dimension

14 1 0 0 TEPER Unit : mm, kg

MODEL TAPER A B C DEF G L Workpiece Max, Weight Max,
Weight R.P.M Run Out

HSN80 1/10 178 110 203 154 96.1 10 200 453.1 10,000 650 34 0.010

HSN100 1/10 198 110 250 157 101.5 15 230 508.5 15,000 500 53.3 0.010

HSN110 1/10 238 125 365 162.5 121.5 15 250 649 20,000 500 60 0.010

HSN120 1/10 238 125 293 162.5 121.5 15 250 577 20,000 500 58 0.010

HSN80 1/20 178 100 203 154 96.1 10 200 453.1 100,000 650 35.2 0.010

HSN100 1/20 198 100 250 157 101.5 15 230 508.5 15,000 500 54.5 0.010 POINT TECH CO.,LTD

HSN110 1/20 238 125 365 162.5 121.5 15 250 649 20,000 500 60 0.010

HSN120 1/20 238 125 293 162.5 121.5 15 250 577 20,000 500 58 0.010 43

※Order example: 'HSN100 1/10' = HSN100 type with 1/10 taper
