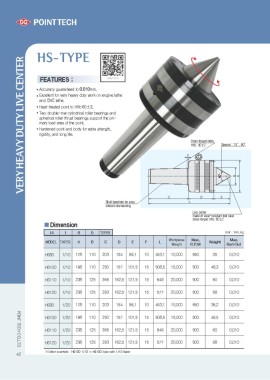

HS-TYPE

FEATURES ;

• Accuracy guaranteed to 0.010mm.
• Excellent for very heavy duty work on engine lathe

and CNC lathe.
• Heat-treated point to HRc 60±2.
• Two double-row cylindrical roller bearings and

spherical roller thrust bearings support the pri-
mary load area of the point.
• Hardened point and body for extra strength,
rigidity, and long life.
VERY HEAVY DUTY LIVE CENTER
BDrop-forged bodySpecial : 75˚, 90˚
AHRc. 50±2

F

Shaft borehole for easy C DE
efficient dismounting L

Dimension Live center
made of wear-resistant tool steel
drop-forged HRc. 60±2

14 1 0 0 TEPER Unit : mm, kg
BC
MODEL TAPER A D E F L Workpiece Max, Weight Max,
Weight R.P.M Run Out

HS80 1/10 178 110 203 154 96.1 10 453.1 10,000 650 35 0.010

HS100 1/10 198 110 250 157 101.5 15 508.5 15,000 500 48.3 0.010

HS110 1/10 238 125 365 162.5 121.5 15 649 20,000 500 60 0.010

HS120 1/10 238 125 293 162.5 121.5 15 577 20,000 500 58 0.010

HS80 1/20 178 110 203 154 96.1 10 453.1 10,000 650 36.2 0.010

POINT TECH CO.,LTD HS100 1/20 198 110 250 157 101.5 15 508.5 15,000 500 49.5 0.010

HS110 1/20 238 125 365 162.5 121.5 15 649 20,000 500 60 0.010

HS120 1/20 238 125 293 162.5 121.5 15 577 20,000 500 58 0.010

42 ※Order example: 'HS100 1/10' = HS100 type with 1/10 taper
