P. 41

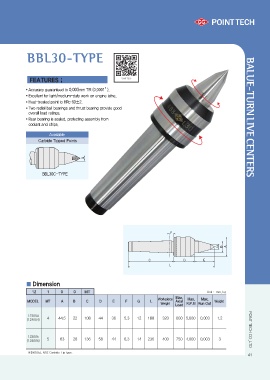

BBL30-TYPE BALUE-TURN LIVE CENTERS
FEATURES ;
• Accuracy guaranteed to 0.003mm TIR (0.0001”).
• Excellent for light/medium-duty work on engine lathe.
• Heat-treated point to HRc 60±2.
• Two radial ball bearings and thrust bearing provide good
overall load ratings.
• Rear bearing is sealed, protecting assembly from
coolant and chips.
Available
Carbide Tipped Points
BBL30C-TYPE
G
GF
B
A
C DE
L
Dimension
12 1 0 0 MT Unit : mm, kg
MODEL MT AB C D E F G L Workpiece Max, Max, Max, Weight
Weight Axial R.P.M Run Out
Load
123004 4 44.5 22 108 44 36 5.3 12 188 320 600 5,000 0.003 1.2 POINT TECH CO.,LTD
(124004)
123005 5 63 28 136 58 44 6.3 14 236 400 750 4,000 0.003 3
(124005)
※(MODEL NO):Carbide Tip type. 41
