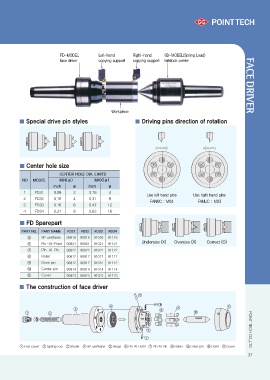

FD-MODEL Left-hand Right-hand SD-MODEL(Spring Load) FACE DRIVER
face driver
copying support copying support tailstock center
Workpiece
Special drive pin styles Driving pins direction of rotation
Center hole size
CENTER HOLE DIA. LIMITS
NO MODEL MIN(ø) MAX(ø)
1 FD31 inch ø inch ø
2 FD32
3 FD33 0.08 2 0.16 4 Use left hand pins Use right hand pins
4 FD34 FANUC : M04 FANUC : M03
0.16 4 0.31 8
0.16 6 0.47 12
0.31 8 0.63 16
FD Sparepart
PART NO. PART NAME FD31 FD32 FD33 FD34 Undersize (X) Oversize (X) Correct (O)
4 SP urethane 90816 90916 91016 91116
6 Pin -At-Point 90821 90921 91021 91121
7 Pin -At-Pin 90822 90922 91022 91122
8 Roller 90817 90917 91017 91117
9 Drive pin 90812 90912 91012 91112
10 Center pin 90814 90914 91014 91114
11 Cover 90823 90923 91023 91123
The construction of face driver
3 4 6 11
8 9 10
12 POINT TECH CO.,LTD
5
7
1 End cover 2 Spring rod 3 Shank 4 SP urethane 5 Head 6 Pin At Point 7 Pin At Pin 8 Roller 9 Drive pin 10 Point 11 Cover
