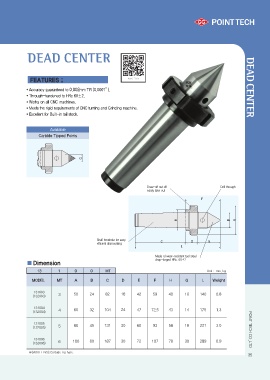

DEAD CENTER DEAD CENTER

FEATURES ;

• Accuracy guaranteed to 0.002mm TIR (0.0001”).
• Through-hardened to HRc 60±2.
• Works on all CNC machines.
• Meets the rigid requirements of CNC turning and Grinding machine.
• Excellent for Built-in tail stock.

Available
Carbide Tipped Points

G Draw-off nut off Drill through
Heasily take outF
B
A

Shaft borehole for easy CD E
efficient dismounting L

Dimension Made of wear-resistant tool steel
drop-forged HRc. 60±2
13 1 0 0 MT
Unit : mm, kg
MODEL MT A B C D
E F H G L Weight

131003 3 50 24 82 16 42 59 40 10 140 0.8
(132003)

131004 4 60 32 104 24 47 72.5 43 14 175 1.3 POINT TECH CO.,LTD
(132004)

131005 5 80 45 131 30 60 93 58 18 221 3.0
(132005)

131006 6 100 60 187 30 72 107 78 30 289 6.9
(132006)

※(MODEL NO):Carbide Tip type. 35
