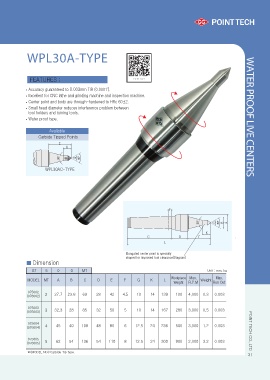

WPL30A-TYPE WATER PROOF LIVE CENTERS

FEATURES ;

• Accuracy guaranteed to 0.003mm TIR (0.0001”).
• Excellent for CNC lathe and grinding machine and inspection machine.
• Center point and body are through-hardened to HRc 60±2.
• Small head diameter reduces interference problem between
tool holders and turning tools.
• Water proof type.

Available
Carbide Tipped Points

E
K

WPL30AC-TYPE
G
GF
B
A

CD K
L E

Elongated center point is specially
shaped for improved tool clearance(Diagram)

Dimension 0 MT Unit : mm, kg
B C DE
07 5 0 F GK L Workpiece Max, Weight Max,
Weight R.P.M Run Out
MODEL MT A

075002 2 27.7 23.8 69 28 42 4.5 10 14 139 100 4,000 0.3 0.003
(076002)

075003 3 32.3 28 85 32 50 5 10 14 167 280 3,000 0.5 0.003 POINT TECH CO.,LTD
(076003)

075004 4 45 40 108 48 80 6 12.5 24 236 500 3,000 1.2 0.003
(076004)

075005 5 62 54 136 54 110 8 12.5 24 300 900 2,000 3.2 0.003
(076005)

※(MODEL NO):Carbide Tip type. 31
