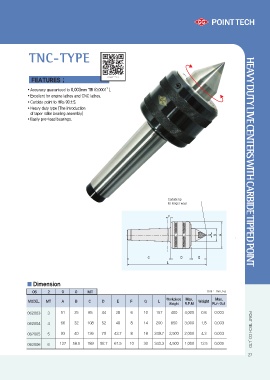

TNC-TYPE HEAVYDUTYLIVECENTERSWITHCARBIDETIPPEDPOINT
FEATURES ;
• Accuracy guaranteed to 0.003mm TIR (0.0001”).
• Excellent for engine lathes and CNC lathes.
• Carbide point to HRa 90±5.
• Heavy duty type (The introduction
of taper roller bearing assembly)
• Easily pre-load bearings.
Carbide tip
for longer wear
F
G
B
A
C DE
L
Dimension
06 2 0 0 MT Unit : mm, kg
MODEL MT A B C D EF G L Workpiece Max, Weight Max,
Weight R.P.M Run Out
062003 3 51 25 85 44 28 6 10 157 400 4,000 0.8 0.003 POINT TECH CO.,LTD
062004 4 66 32 108 52 40 8
062005 5 93 40 136 70 43.7 8 14 200 650 3,000 1.8 0.003
062006 6 127 58.5 189 92.7 61.5 10
18 249.7 2,500 2,000 4.3 0.003
30 343.3 4,500 1,000 12.5 0.005
