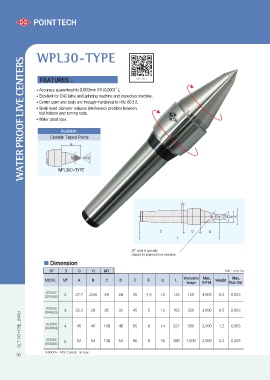

WPL30-TYPE

FEATURES ;

• Accuracy guaranteed to 0.003mm TIR (0.0001”).
• Excellent for CNC lathe and grinding machine and inspection machine.
• Center point and body are through-hardened to HRc 60±2.
• Small head diameter reduces interference problem between

tool holders and turning tools.
• Water proof type.

Available
Carbide Tipped Points

E

WPL30C-TYPE
WATER PROOF LIVE CENTERS
G F
G
B
A

CD E
L

30˚point is specially
shaped for improved tool clearance

Dimension

07 3 0 0 MT Unit : mm, kg

MODEL MT A B C D E F G L Workpiece Max, Weight Max,
Weight R.P.M Run Out

073002 2 27.7 23.8 69 28 35 4.5 12 132 120 4,000 0.3 0.003
(074002)

POINT TECH CO.,LTD 073003 3 32.3 28 85 32 45 5 12 162 320 3,000 0.5 0.003
(074003)

073004 4 45 40 108 48 65 6 14 221 560 3,000 1.2 0.003
(074004)

073005 5 62 54 136 54 90 8 16 280 1,000 2,000 3.2 0.003
(074005)

30 ※(MODEL NO):Carbide Tip type.
