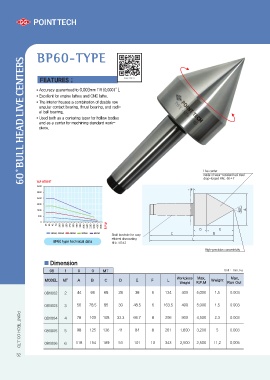

60˚BULL HEAD LIVE CENTERS BP60-TYPE

FEATURES ;

• Accuracy guaranteed to 0.003mm TIR (0.0001”).
• Excellent for engine lathes and CNC lathe.
• The interior houses a combination of double row

angular contact bearing, thrust bearing, and radi-
al ball bearing.
• Used both as a centering taper for hollow bodies
and as a center for machining standard work-
piece.

W.P WEIGHT Live center A
made of wear-resistant tool steel
3500 drop-forged HRc. 60±2
3000 F
2500
2000 DE
1000 CB

500 L
0 High-precision concentricity
25
35
45
70
100
130
190
270
350
500
800
1000
1500
2200
3000
4000
6000

R.P.M

2BP60, 3BP60 4BP60 5BP60 6BP60 Shaft borehole for easy
efficient dismounting
BP60 type technical data HRc. 50±2

Dimension 0 MT Unit : mm, kg
BC
08 1 0 D EF L Workpiece Max, W eight Max,
Weight R.P.M Run Out
MODEL MT A

081002 2 44 66 68 28 38 6 134 400 5,000 1.5 0.003

081003 3 56 78.5 85 30 48.5 6 163.5 400 5,000 1.5 0.003

POINT TECH CO.,LTD 081004 4 78 100 108 33.3 66.7 8 208 800 4,500 2.3 0.003

081005 5 98 125 136 41 84 8 261 1,600 3,200 5 0.003

081006 6 118 154 189 53 101 10 343 2,500 2,500 11.2 0.005
