P. 33

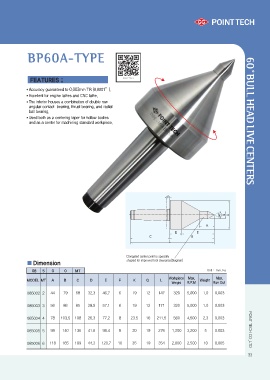

BP60A-TYPE 60˚BULL HEAD LIVE CENTERS
FEATURES ;
• Accuracy guaranteed to 0.003mm TIR (0.0001”).
• Excellent for engine lathes and CNC lathe.
• The interior houses a combination of double row
angular contact bearing, thrust bearing, and radial
ball bearing.
• Used both as a centering taper for hollow bodies
and as a center for machining standard workpiece.
F
G
A
K
DE
CB
L
Dimension Elongated center point is specially
shaped for improved tool clearance(Diagram)
08 5 0 0 MT Unit : mm, kg
C
MODEL MT A B D E F K G L Workpiece Max, Weight Max,
Weight R.P.M Run Out
085002 2 44 79 68 32.3 46.7 6 19 12 147 320 5,000 1.0 0.003
085003 3 56 86 85 28.9 57.1 6 19 12 171 320 5,000 1.0 0.003
085004 4 78 103.5 108 26.3 77.2 8 23.5 16 211.5 560 4,500 2.3 0.003 POINT TECH CO.,LTD
085005 5 98 140 136 41.6 98.4 8 30 19 276 1,200 3,200 5 0.003
085006 6 118 165 189 44.3 120.7 10 35 19 354 2,000 2,500 10 0.005
