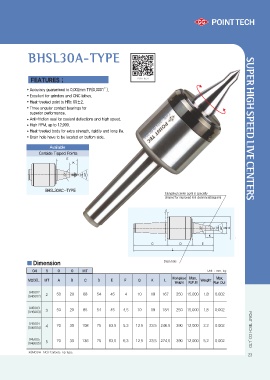

BHSL30A-TYPE SUPER HIGH SPEED LIVE CENTERS

FEATURES ;

• Accuracy guaranteed to 0.002mm TIR(0.0001”).
• Excellent for grinders and CNC lathes.
• Heat-treated point to HRc 60±2.
• Three angular contact bearings for

superior performance.
• Anti-friction seal for coolant deflections and high speed.
• High RPM, up to 12,000.
• Heat-treated body for extra strength, rigidity and long life.
• Drain hole have to be located on buttom side.

Available
Carbide Tipped Points

E
K

BHSL30AC-TYPE G
G
B
A
Elongated center point is specially
shaped for improved tool clearance(Diagram)

F

CD K
L E

Dimension Drain hole

04 5 0 0 MT Unit : mm, kg

MODEL MT A B C DE F G K L Workpiece Max, Weight Max,
Weight R.P.M Run Out

045002 2 50 20 68 54 45 4 10 19 167 250 15,000 1.8 0.002
(046002)

045003 3 50 20 85 54 45 4.5 10 19 184 250 15,000 1.8 0.002 POINT TECH CO.,LTD
(046003)

045004 4 70 30 108 75 63.5 5.3 12.5 23.5 246.5 390 12,000 2.2 0.002
(046004)

045005 5 70 30 136 75 63.5 6.3 12.5 23.5 274.5 390 12,000 5.2 0.002
(046005)

※(MODEL NO):Carbide Tip type. 23
