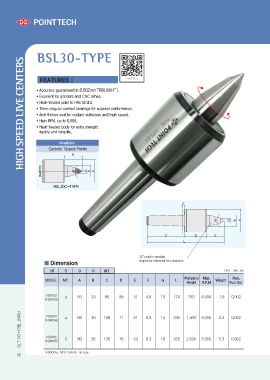

HIGH SPEED LIVE CENTERSBSL30-TYPE
GFEATURES ;
B
A• Accuracy guaranteed to 0.002mm TIR(0.0001”).
G• Excellent for grinders and CNC lathes.
B• Heat-treated point to HRc 60±2.
A• Three angular contact bearings for superior performance.
• Anti-friction seal for coolant deflectors and high speed.
• High RPM, up to 6,000.
• Heat-treated body for extra strength,
rigidity and long life.
Available
Carbide Tipped Points
E
BSL30C-TYPE
F
CD E
L
Dimension 30˚point is specially
shaped for improved tool clearance
16 3 0 0 MT Unit : mm, kg
BC
MODEL MT A D EF G L Workpiece Max, Weight Max,
Weight R.P.M Run Out
163003 3 50 20 85 58 31 4.5 10 174 750 6,000 1.9 0.002
(164003)
POINT TECH CO.,LTD 163004 4 66 30 108 71 51 5.3 14 230 1,400 6,000 2.4 0.002
(164004)
163005 5 80 35 136 76 53 6.3 18 265 2,500 5,000 5.3 0.002
(164005)
18 ※(MODEL NO):Carbide Tip type.
