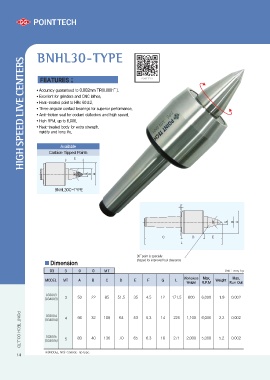

HIGH SPEED LIVE CENTERSBNHL30-TYPE

GFEATURES ;
B
A• Accuracy guaranteed to 0.002mm TIR(0.0001”).
G• Excellent for grinders and CNC lathes.
B• Heat-treated point to HRc 60±2.
A• Three angular contact bearings for superior performance.
• Anti-friction seal for coolant deflectors and high speed.
• High RPM, up to 6,000.
• Heat-treated body for extra strength,

rigidity and long life.

Available
Carbide Tipped Points

E

BNHL30C-TYPE

F

CD E
L

Dimension 30˚point is specially
shaped for improved tool clearance

03 3 0 0 MT Unit : mm, kg
BCD
MODEL MT A EF G L Workpiece Max, Weight Max,
Weight R.P.M Run Out

033003 3 50 22 85 51.5 35 4.5 12 171.5 600 6,000 1.9 0.002
(034003)

POINT TECH CO.,LTD 033004 4 66 32 108 64 53 5.3 14 225 1,100 6,000 2.2 0.002
(034004)

033005 5 80 40 136 70 65 6.3 16 271 2,000 5,000 5.2 0.002
(034005)

14 ※(MODEL NO):Carbide Tip type.
