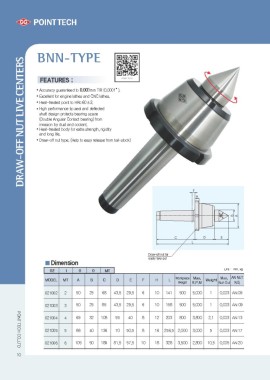

BNN-TYPE

FEATURES ;

• Accuracy guaranteed to 0.003mm TIR (0.0001”).
• Excellent for engine lathes and CNC lathes.
• Heat-treated point to HRc 60±2.
• High performance lip seal and deflected

shaft design protects bearing space
(Double Angular Contact bearing) from
invasion by dust and coolant.
• Heat-treated body for extra strength, rigidity
and long life.
• Draw-off nut type. (Help to easy release from tail-stock)
DRAW-OFF NUT LIVE CENTERS
F
BH
A

C DE
L

Dimension Draw-off nut for
easily take out

02 1 0 0 MT Unit : mm, kg

MODEL MT A BC D E F H L Workpiece Max, Weight Max, AN NUT
Weight R.P.M Run Out NO.

021002 2 50 25 68 43.5 29.5 6 10 141 500 5,000 1 0.003 AN 09

021003 3 50 25 85 43.5 29.5 6 10 158 500 5,000 1 0.003 AN 09

POINT TECH CO.,LTD 021004 4 69 32 108 55 40 8 12 203 800 3,800 2.1 0.003 AN 13

021005 5 88 40 136 70 50.5 8 16 256.5 2,000 3,000 5 0.003 AN 17

021006 6 105 50 189 81.5 57.5 10 18 328 3,500 2,800 10.5 0.005 AN 20
