P. 15

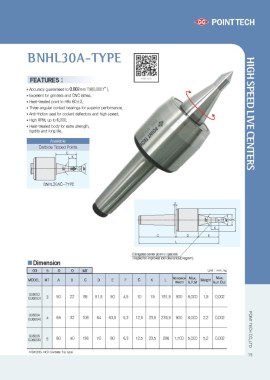

BNHL30A-TYPE HIGH SPEED LIVE CENTERS
FEATURES ;
• Accuracy guaranteed to 0.002mm TIR(0.0001”).
• Excellent for grinders and CNC lathes.
• Heat-treated point to HRc 60±2.
• Three angular contact bearings for superior performance.
• Anti-friction seal for coolant deflectors and high speed.
• High RPM, up to 6,000.
• Heat-treated body for extra strength,
rigidity and long life.
Available
Carbide Tipped Points
E
K
BNHL30AC-TYPE G
G
BF
A
CD K
L E
Dimension Elongated center point is specially
shaped for improved tool clearance(Diagram)
03 5 0 0 MT Unit : mm, kg
MODEL MT A B CD EF GK L Workpiece Max, Weight Max,
Weight R.P.M Run Out
035003 3 50 22 85 51.5 50 4.5 10 19 181.5 500 6,000 1.9 0.002
(036003)
035004 4 66 32 108 64 63.5 5.3 12.5 23.5 235.5 900 6,000 2.2 0.002 POINT TECH CO.,LTD
(036004)
035005 5 80 40 136 70 80 6.3 12.5 23.5 286 1,700 5,000 5.2 0.002
(036005)
※(MODEL NO):Carbide Tip type. 15
