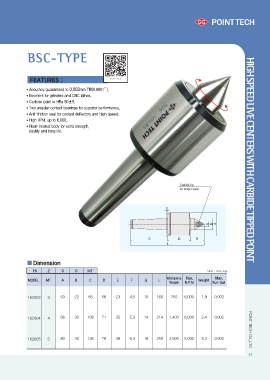

BSC-TYPE HIGHSPEEDLIVECENTERSWITHCARBIDETIPPEDPOINT
FEATURES ;
• Accuracy guaranteed to 0.002mm TIR(0.0001”).
• Excellent for grinders and CNC lathes.
• Carbide point to HRa 90±5.
• Two angular contact bearings for superior performance.
• Anti-friction seal for coolant deflectors and high speed.
• High RPM, up to 6,000.
• Heat-treated body for extra strength,
rigidity and long life.
Carbide tip
for longer wear
F
G
B
A
C DE
L
Dimension
16 2 0 0 MT Unit : mm, kg
MODEL MT A B C D E F G L Workpiece Max, Weight Max,
Weight R.P.M Run Out
162003 3 50 22 85 58 23 4.5 10 166 750 6,000 1.9 0.002
162004 4 66 30 108 71 35 5.3 14 214 1,400 6,000 2.4 0.002 POINT TECH CO.,LTD
162005 5 80 35 136 76 38 6.3 18 250 2,500 5,000 5.3 0.002
