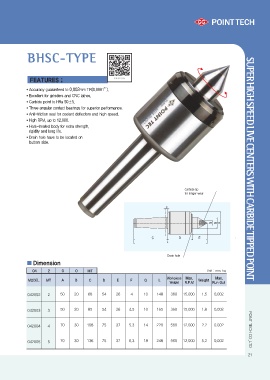

BHSC-TYPE SUPERHIGHSPEEDLIVECENTERSWITHCARBIDETIPPEDPOINT

FEATURES ;

• Accuracy guaranteed to 0.002mm TIR(0.0001”).
• Excellent for grinders and CNC lathes.
• Carbide point to HRa 90±5.
• Three angular contact bearings for superior performance.
• Anti-friction seal for coolant deflectors and high speed.
• High RPM, up to 12,000.
• Heat-treated body for extra strength,

rigidity and long life.
• Drain hole have to be located on

buttom side.

Carbide tip
for longer wear

F

G
B
A

CD E
L

Drain hole

Dimension 0 MT Unit : mm, kg

04 2 0

MODEL MT A B C D E F G L Workpiece Max, Weight Max,
Weight R.P.M Run Out

042002 2 50 20 68 54 26 4 10 148 360 15,000 1.5 0.002

042003 3 50 20 85 54 26 4.5 10 165 360 15,000 1.8 0.002 POINT TECH CO.,LTD

042004 4 70 30 108 75 37 5.3 14 220 560 12,000 2.2 0.002

042005 5 70 30 136 75 37 6.3 18 248 560 12,000 5.2 0.002
