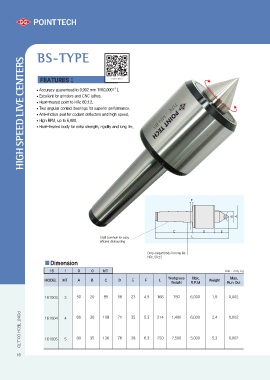

P. 16
BS-TYPE
FEATURES ;
• Accuracy guaranteed to 0.002 mm TIR(0.0001”).
• Excellent for grinders and CNC lathes.
• Heat-treated point to HRc 60±2.
• Two angular contact bearings for superior performance.
• Anti-friction seal for coolant deflectors and high speed.
• High RPM, up to 6,000.
• Heat-treated body for extra strength, rigidity and long life.
HIGH SPEED LIVE CENTERS
F
B
A
Shaft borehole for easy C DE
efficient dismounting L
0 MT Drop-forged body for long life
B CDE HRc. 50±2
Dimension
16 1 0 Unit : mm, kg
MODEL MT A F L Workpiece Max, Weight Max,
Weight R.P.M Run Out
161003 3 50 20 85 58 23 4.5 166 750 6,000 1.9 0.002
POINT TECH CO.,LTD 161004 4 66 30 108 71 35 5.3 214 1,400 6,000 2.4 0.002
161005 5 80 35 136 76 38 6.3 250 2,500 5,000 5.3 0.002
16
