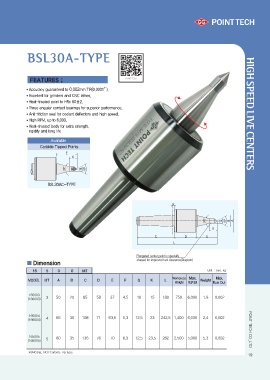

BSL30A-TYPE HIGH SPEED LIVE CENTERS
FEATURES ;
• Accuracy guaranteed to 0.002mm TIR(0.0001”).
• Excellent for grinders and CNC lathes.
• Heat-treated point to HRc 60±2.
• Three angular contact bearings for superior performance.
• Anti-friction seal for coolant deflectors and high speed.
• High RPM, up to 6,000.
• Heat-treated body for extra strength,
rigidity and long life
Available
Carbide Tipped Points
E
K
BSL30AC-TYPE G
G
BF
A
CD K
L E
Dimension Elongated center point is specially
shaped for improved tool clearance(Diagram)
16 5 0 0 MT Unit : mm, kg
MODEL MT A B CD EF GK L Workpiece Max, Weight Max,
Weight R.P.M Run Out
165003 3 50 20 85 58 37 4.5 10 15 180 750 6,000 1.9 0.002
(166003)
165004 4 66 30 108 71 63.5 5.3 12.5 23 242.5 1,400 6,000 2.4 0.002 POINT TECH CO.,LTD
(166004)
165005 5 80 35 136 76 70 6.3 12.5 23.5 282 2,500 5,000 5.3 0.002
(166005)
※(MODEL NO):Carbide Tip type. 19
