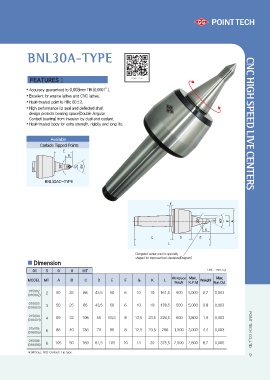

BNL30A-TYPE CNC HIGH SPEED LIVE CENTERS

FEATURES ;

• Accuracy guaranteed to 0.003mm TIR (0.0001”).
• Excellent for engine lathes and CNC lathes.
• Heat-treated point to HRc 60±2.
• High performance lip seal and deflected shaft

design protects bearing space(Double Angular
Contact bearing) from invasion by dust and coolant.
• Heat-treated body for extra strength, rigidity and long life.

Available
Carbide Tipped Points

E
K

BNL30AC-TYPE G
G
BF
A

CD K
L E

Dimension Elongated center point is specially
shaped for improved tool clearance(Diagram)
01 5 0
0 MT Unit : mm, kg
MODEL MT A B
C D E F G K L Workpiece Max, Weight Max,
Weight R.P.M Run Out

015002 2 50 25 68 43.5 50 6 10 19 161.5 500 5,000 0.7 0.003
(016002)

015003 3 50 25 85 43.5 50 6 10 19 178.5 500 5,000 0.8 0.003
(016003)

015004 4 69 32 108 55 63.5 8 12.5 23.5 226.5 500 3,800 1.9 0.003 POINT TECH CO.,LTD
(016004)

015005 5 88 40 136 70 80 8 12.5 23.5 286 1,500 3,000 4.4 0.003
(016005)

015006 6 105 50 189 81.5 105 10 14 30 375.5 2,500 2,800 8.7 0.005
(016006)

※(MODEL NO):Carbide Tip type. 9
