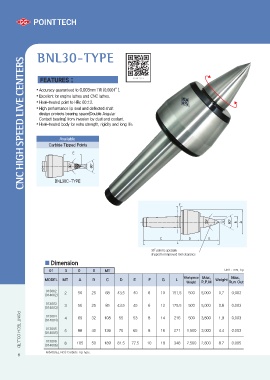

CNC HIGH SPEED LIVE CENTERSBNL30-TYPE
G
GFEATURES ;
B
A• Accuracy guaranteed to 0.003mm TIR (0.0001”).
• Excellent for engine lathes and CNC lathes.
• Heat-treated point to HRc 60±2.
• High performance lip seal and deflected shaft

design protects bearing space(Double Angular
Contact bearing) from invasion by dust and coolant.
• Heat-treated body for extra strength, rigidity and long life.

Available
Carbide Tipped Points

E

BNL30C-TYPE

F

CD E
L

30˚point is specially
shaped for improved tool clearance

Dimension 0 MT Unit : mm, kg
BCD
01 3 0

MODEL MT A E F G L Workpiece Max, Weight Max,
Weight R.P.M Run Out

013002 2 50 25 68 43.5 40 6 10 151.5 500 5,000 0.7 0.003
(014002)

013003 3 50 25 85 43.5 45 6 12 175.5 500 5,000 0.8 0.003
(014003)

POINT TECH CO.,LTD 013004 4 69 32 108 55 53 8 14 216 500 3,800 1.9 0.003
(014004)

013005 5 88 40 136 70 65 8 16 271 1,500 3,000 4.4 0.003
(014005)

013006 6 105 50 189 81.5 77.5 10 18 348 2,500 2,800 8.7 0.005
(014006)

8 ※(MODEL NO):Carbide Tip type.
