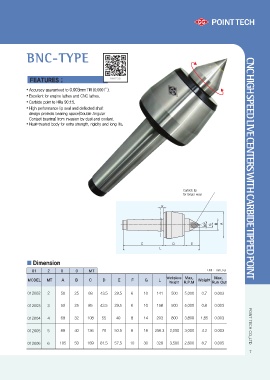

BNC-TYPE CNCHIGHSPEEDLIVECENTERSWITHCARBIDETIPPEDPOINT
FEATURES ;
• Accuracy guaranteed to 0.003mm TIR (0.0001”).
• Excellent for engine lathes and CNC lathes.
• Carbide point to HRa 90±5.
• High performance lip seal and deflected shaft
design protects bearing space(Double Angular
Contact bearing) from invasion by dust and coolant.
• Heat-treated body for extra strength, rigidity and long life.
Carbide tip
for longer wear
F
G
B
A
C DE
L
Dimension 0 MT Unit : mm, kg
01 2 0
MODEL MT A B C D E F G L Workpiece Max, Weight Max,
Weight R.P.M Run Out
012002 2 50 25 68 43.5 29.5 6 10 141 500 5,000 0.7 0.003
012003 3 50 25 85 43.5 29.5 6 10 158 500 5,000 0.8 0.003
012004 4 69 32 108 55 40 8 14 203 800 3,800 1.85 0.003 POINT TECH CO.,LTD
012005 5 88 40 136 70 50.5 8 18 256.3 2,000 3,000 4.2 0.003
012006 6 105 50 189 81.5 57.5 10 30 328 3,500 2,800 8.7 0.005
