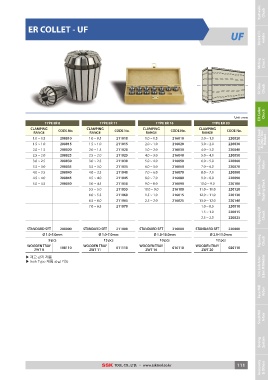

Page 111 - SSK

Hydraulic
Chuck

ER COLLET - UF UF Shrink Fit
Holder

Milling
Chuck

SK Slim
Chuck

Unit : mm ER Collet
Chuck
TYPE ER 8 TYPE ER 11 TYPE ER 16 TYPE ER 20

CLAMPING CODE No. CLAMPING CODE No. CLAMPING CODE No. CLAMPING CODE No. N&COHDtroilhlledreCrThsouoclk
RANGE RANGE RANGE RANGE

1.0 ~ 0.5 208010 1.0 ~ 0.5 211010 1.0 ~ 0.5 216010 2.0 ~ 1.0 220020

1.5 ~ 1.0 208015 1.5 ~ 1.0 211015 2.0 ~ 1.0 216020 3.0 ~ 2.0 220030

2.0 ~ 1.5 208020 2.0 ~ 1.5 211020 3.0 ~ 2.0 216030 4.0 ~ 3.0 220040

2.5 ~ 2.0 208025 2.5 ~ 2.0 211025 4.0 ~ 3.0 216040 5.0 ~ 4.0 220050 Morse Taper

3.0 ~ 2.5 208030 3.0 ~ 2.5 211030 5.0 ~ 4.0 216050 6.0 ~ 5.0 220060 Arbor

3.5 ~ 3.0 208035 3.5 ~ 3.0 211035 6.0 ~ 5.0 216060 7.0 ~ 6.0 220070

4.0 ~ 3.5 208040 4.0 ~ 3.5 211040 7.0 ~ 6.0 216070 8.0 ~ 7.0 220080

4.5 ~ 4.0 208045 4.5 ~ 4.0 211045 8.0 ~ 7.0 216080 9.0 ~ 8.0 220090 Tapping Chuck

5.0 ~ 4.5 208050 5.0 ~ 4.5 211050 9.0 ~ 8.0 216090 10.0 ~ 9.0 220100 Synchro

5.5 ~ 5.0 211055 10.0 ~ 9.0 216100 11.0 ~ 10.0 220120

6.0 ~ 5.5 211060 1.5 ~ 1.0 216015 12.0 ~ 11.0 220130

6.5 ~ 6.0 211065 2.5 ~ 2.0 216025 13.0 ~ 12.0 220140

7.0 ~ 6.5 211070 1.0 ~ 0.5 220010 Tapping ER
Chuck
1.5 ~ 1.0 220015

2.5 ~ 2.0 220025

STANDARD SET 208000 STANDARD SET 211000 STANDARD SET 216000 STANDARD SET 220000

Ø 1.0-5.0mm Ø 1.0-7.0mm Ø 1.0-10.0mm Ø 2.0-13.0mm Tapping
Chuck
9 pcs 13 pcs 10 pcs 12 pcs

WOODEN TRAY 108110 WOODEN TRAY 011110 WOODEN TRAY 016110 WOODEN TRAY 020110
ZWT 8 ZWT 11 ZWT 16 ZWT 20

▶ 재고 관리 제품 Side Lock Arbor
▶ Inch Type 제품 공급 가능 & End Mill Holder

Face Mill
Arbor

Shell Mill
Arbor

Boring
System

TOOL CO., LTD. www.ssktool.co.kr 111 Accessory
& Others
