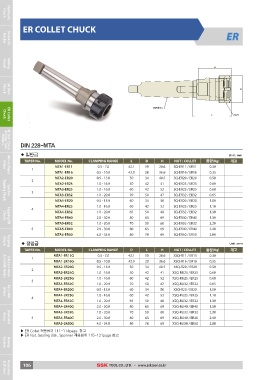

Page 106 - SSK

Hydraulic
Chuck

Shrink Fit ER COLLET CHUCK ER
Holder
H
Milling
Chuck

SK Slim D
Chuck

ER Collet TAPER No.
Chuck
L NUT

N&COHDtorhilldel reCTrhsouoclk DIN 228-MTA

Morse Taper ◆ 일반급 Unit : mm

Arbor TAPER No. MODEL No. CLAMPING RANGE L D H NUT / COLLET 중량(Kg) 재고
1 MTA1-ER11
2 MTA1-ER16 0.5 - 7.0 42.1 19 28.6 SQ-ER11 / ER11 0.30
3 MTA2-ER20
MTA2-ER25 0.5 - 10.0 43.9 28 36.6 SQ-ER16 / ER16 0.35
4 MTA3-ER25
Tapping Chuck MTA3-ER32 0.5 - 13.0 50 34 40.5 SQ-ER20 / ER20 0.50
5 MTA4-ER20
Synchro MTA4-ER25 1.0 - 16.0 50 42 41 SQ-ER25 / ER25 0.60
MTA4-ER32
MTA4-ER40 1.0 - 16.0 60 42 52 SQ-ER25 / ER25 0.60
MTA5-ER32
MTA5-ER40 1.0 - 20.0 70 50 47 SQ-ER32 / ER32 0.65
MTA5-ER50
0.5 - 13.0 60 34 50 SQ-ER20 / ER20 1.00

Tapping ER 1.0 - 16.0 60 42 52 SQ-ER25 / ER25 1.10
Chuck
1.0 - 20.0 65 50 48 SQ-ER32 / ER32 1.30

2.0 - 30.0 80 63 69 SQ-ER40 / ER40 1.50

1.0 - 20.0 70 50 60 SQ-ER32 / ER32 2.20

2.0 - 30.0 80 63 69 SQ-ER40 / ER40 2.40

Tapping 4.0 - 34.0 80 78 69 SQ-ER50 / ER50 2.80
Chuck
◆ 정밀급 Unit : mm

TAPER No. MODEL No. CLAMPING RANGE D L H NUT / COLLET 중량(Kg) 재고
1 MTA1-ER11G
Side Lock Arbor 2 MTA1-ER16G 0.5 - 7.0 42.1 19 28.6 XSQ-R11 / ER11 0.30
& End Mill Holder 3 MTA2-ER20G
MTA2-ER25G 0.5 - 10.0 43.9 28 36.6 XSQ-R16 / ER16 0.35
4 MTA3-ER25G
MTA3-ER32G 0.5 - 13.0 50 34 40.5 XSQ-R20 / ER20 0.50
5 MTA4-ER20G
MTA4-ER25G 1.0 - 16.0 50 42 41 XSQ-RU25 / ER25 0.60
MTA4-ER32G
MTA4-ER40G 1.0 - 16.0 60 42 52 XSQ-RU25 / ER25 0.60
MTA5-ER32G
Face Mill MTA5-ER40G 1.0 - 20.0 70 50 47 XSQ-RU32 / ER32 0.65
Arbor MTA5-ER50G
0.5 - 13.0 60 34 50 XSQ-R20 / ER20 1.00

1.0 - 16.0 60 42 52 XSQ-RU25 / ER25 1.10

1.0 - 20.0 65 50 48 XSQ-RU32 / ER32 1.30

2.0 - 30.0 80 63 69 XSQ-RU40 / ER40 1.50

Shell Mill 1.0 - 20.0 70 50 60 XSQ-RU32 / ER32 2.20
Arbor
2.0 - 30.0 80 63 69 XSQ-RU40 / ER40 2.40

4.0 - 34.0 80 78 69 XSQ-RU50 / ER50 2.80

Boring ▶ ER Collet 적용범위 111-114page 참고
System ▶ ER Nut, Sealing disk, Spanner 적용범위 115-121page 참고

Accessory 106 TOOL CO., LTD. www.ssktool.co.kr
