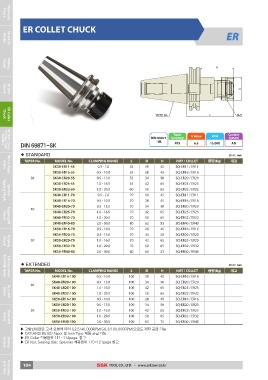

Shrink Fit ER COLLET CHUCK ER
Holder
H
Milling
Chuck

SK Slim D
Chuck

ER Collet TAPER No. L NUT
Chuck

N&COHDtorhilldel reCTrhsouoclk DIN 69871-SK DIN 69871 Taper G Value RPM Coolant
- SK Accuracy 6.3 15,000 System

AT3 AD

Morse Taper ◆ STANDARD Unit : mm

Arbor TAPER No. MODEL No. CLAMPING RANGE L D H NUT / COLLET 중량(Kg) 재고

SK30-ER11-55 0.5 - 7.0 55 19 45 SQ-ER11 / ER11

SK30-ER16-55 0.5 - 10.0 55 28 45 SQ-ER16 / ER16

Tapping Chuck 30 SK30-ER20-55 0.5 - 13.0 55 34 50 SQ-ER20 / ER20

Synchro SK30-ER25-55 1.0 - 16.0 55 42 65 SQ-ER25 / ER25

SK30-ER32-60 1.0 - 20.0 60 50 65 SQ-ER32 / ER32

SK40-ER11-70 0.5 - 7.0 70 19 45 SQ-ER11 / ER11

SK40-ER16-70 0.5 - 10.0 70 28 45 SQ-ER16 / ER16

Tapping ER 40 SK40-ER20-70 0.5 - 13.0 70 34 50 SQ-ER20 / ER20
Chuck SK40-ER25-70
1.0 - 16.0 70 42 65 SQ-ER25 / ER25

SK40-ER32-70 1.0 - 20.0 70 50 65 SQ-ER32 / ER32

SK40-ER40-80 2.0 - 30.0 80 63 53 SQ-ER40 / ER40

SK50-ER16-70 0.5 - 10.0 70 28 45 SQ-ER16 / ER16

Tapping SK50-ER20-70 0.5 - 13.0 70 34 50 SQ-ER20 / ER20
Chuck
50 SK50-ER25-70 1.0 - 16.0 70 42 65 SQ-ER25 / ER25

SK50-ER32-70 1.0 - 20.0 70 50 65 SQ-ER32 / ER32

SK50-ER40-80 2.0 - 30.0 80 63 53 SQ-ER40 / ER40

Side Lock Arbor ◆ EXTENDED Unit : mm
& End Mill Holder 재고
TAPER No. MODEL No. CLAMPING RANGE L D H NUT / COLLET 중량(Kg)
45 SQ-ER16 / ER16
SK40-ER16-100 0.5 - 10.0 100 28 50 SQ-ER20 / ER20
65 SQ-ER25 / ER25
40 SK40-ER20-100 0.5 - 13.0 100 34 65 SQ-ER32 / ER32
SK40-ER25-100 45 SQ-ER16 / ER16
Face Mill 1.0 - 16.0 100 42 50 SQ-ER20 / ER20
Arbor 65 SQ-ER25 / ER25
SK40-ER32-100 1.0 - 20.0 100 50 65 SQ-ER32 / ER32
75 SQ-ER40 / ER40
SK50-ER16-100 0.5 - 10.0 100 28

SK50-ER20-100 0.5 - 13.0 100 34

Shell Mill 50 SK50-ER25-100 1.0 - 16.0 100 42
Arbor
SK50-ER32-100 1.0 - 20.0 100 50

SK50-ER40-100 2.0 - 30.0 100 63

Boring ▶ 고발란싱급은 고객 요청에 따라 G2.5/40,000RPM(G6.3/100,000RPM)으로도 제작 공급 가능
System ▶ CAT(ANSI B5.50) Taper 및 Inch Type 제품 공급 가능
▶ ER Collet 적용범위 111-114page 참고
▶ ER Nut, Sealing disk, Spanner 적용범위 115-121page 참고

Accessory 104 TOOL CO., LTD. www.ssktool.co.kr
