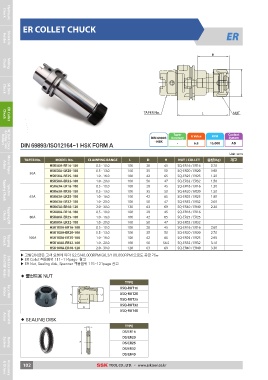

Page 102 - SSK

Hydraulic
Chuck

Shrink Fit ER COLLET CHUCK ER
Holder
H

Milling
Chuck

SK Slim
Chuck

ER Collet TAPER No. L NUT
Chuck

N&COHDtorhilldel reCTrhsouoclk DIN 69893/ISO12164-1 HSK FORM A DIN 69893 Taper G Value RPM Coolant
- HSK Accuracy 6.3 15,000 System

- AD

Arbor Morse Taper TAPER No. MODEL No. CLAMPING RANGE L D H NUT / COLLET 중량(Kg) Unit : mm
0.70 재고
SQ-ER16 / ER16 0.90
HSK50A-ER16-100 0.5 - 10.0 100 28 45 SQ-ER20 / ER20 1.20
SQ-ER25 / ER25 1.50
50A HSK50A-ER20-100 0.5 - 13.0 100 35 50 SQ-ER32 / ER32 1.20
HSK50A-ER25-100 1.0 - 16.0 100 42 65 SQ-ER16 / ER16 1.50
SQ-ER20 / ER20 1.80
Tapping Chuck HSK50A-ER32-100 1.0 - 20.0 100 50 47 SQ-ER25 / ER25 2.00
SQ-ER32 / ER32 2.30
Synchro HSK63A-ER16-100 0.5 - 10.0 100 28 45 SQ-ER40 / ER40
SQ-ER16 / ER16 2.60
HSK63A-ER20-100 0.5 - 13.0 100 35 50 SQ-ER25 / ER25 2.70
SQ-ER32 / ER32 2.90
63A HSK63A-ER25-100 1.0 - 16.0 100 42 65 SQ-ER16 / ER16 3.10
SQ-ER20 / ER20 3.30
HSK63A-ER32-100 1.0 - 20.0 100 50 47 SQ-ER25 / ER25
SQ-ER32 / ER32
Tapping ER HSK63A-ER40-120 2.0 - 30.0 120 63 69 SQ-ER40 / ER40
Chuck
HSK80A-ER16-100 0.5 - 10.0 100 28 45

80A HSK80A-ER25-100 1.0 - 16.0 100 42 65

HSK80A-ER32-100 1.0 - 20.0 100 50 47

HSK100A-ER16-100 0.5 - 10.0 100 28 45

Tapping HSK100A-ER20-100 0.5 - 13.0 100 35 50
Chuck
100A HSK100A-ER25-100 1.0 - 16.0 100 42 65

HSK100A-ER32-100 1.0 - 20.0 100 50 56.5

HSK100A-ER40-120 2.0 - 30.0 120 63 69

Side Lock Arbor ▶ 고발란싱급은 고객 요청에 따라 G2.5/40,000RPM(G6.3/100,000RPM)으로도 공급 가능
& End Mill Holder ▶ ER Collet 적용범위 111-114page 참고
▶ ER Nut, Sealing disk, Spanner 적용범위 115-121page 참고

Face Mill ◆ 쿨런트용 NUT TYPE
Arbor ◆ SEALING DISK XSQ-RUT16
XSQ-RUT20
Shell Mill 102 XSQ-RUT25
Arbor XSQ-RUT32
XSQ-RUT40
Boring B
System A TYPE
DS/ER16
Accessory DS/ER20
& Others DS/ER25
DS/ER32
DS/ER40

TOOL CO., LTD. www.ssktool.co.kr
